プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO9001
モデル番号: NiCr8020
支払及び船積みの言葉
最小注文数量: 10Kg
パッケージの詳細: カートン箱
受渡し時間: 2~5日
支払条件: L/C、T/T、ウェスタン・ユニオン
供給の能力: 5000ton/year
項目: |
座礁させたニクロムは熱するケーブルに使用する5*0.287mmをワイヤーで縛る |
材料: |
ニッケル80%のクロム20% |
表面: |
明るい |
Pakage: |

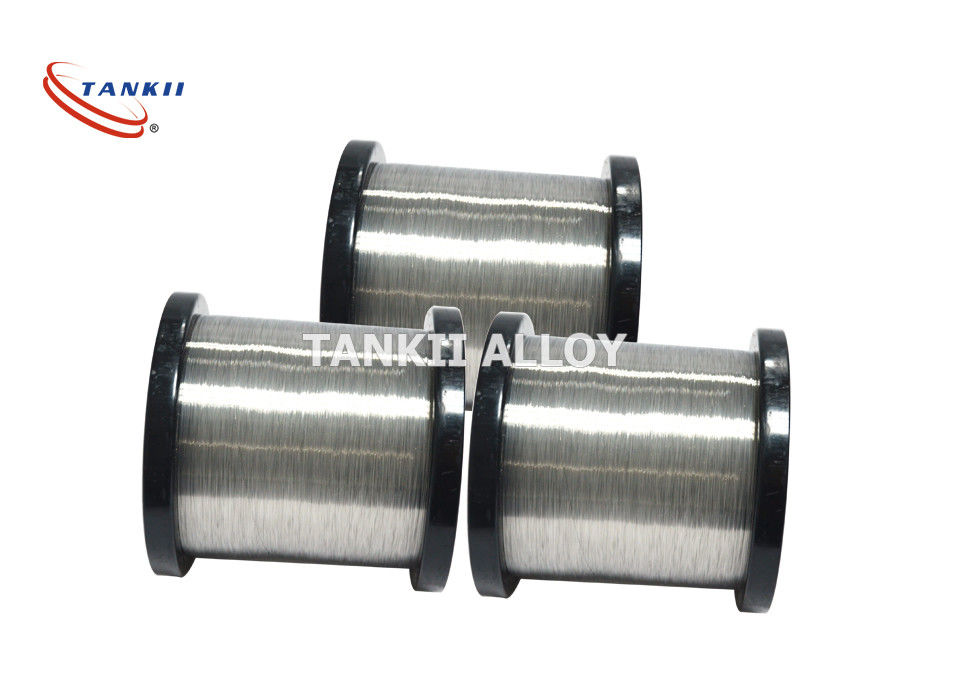

ボビン |
項目: |
座礁させたニクロムは熱するケーブルに使用する5*0.287mmをワイヤーで縛る |
材料: |
ニッケル80%のクロム20% |
表面: |
明るい |
Pakage: |
ボビン |
Nickel Alloy Wire Nichrome 675/NiCr6015
1.About Nichrome NiCr6015 wire
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2.NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
3.Chemical Composition of NiCr6015
C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
Max | |||||||||
0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4.Typical Mechanical properties of Nicr6015
Yield strength | Tensile Strength | Elongation |
Mpa | Mpa | % |
370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity
20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
