プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001 Rohs
モデル番号: Ni80Al20
支払及び船積みの言葉
最小注文数量: 30kg
価格: 交渉可能
パッケージの詳細: 木製ケース
受渡し時間: 15-25日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 1年ごとの2000Tons
型番: |
Ni80Al20 |
スプール: |
DIN300 |
製品タイプ: |
ワイヤー |
輸送パッケージ: |
15kg/スプール、紙のカートン、合板箱 |
仕様: |
RoHS、ISO 9001:2008 |
HSコード: |
7505220000 |
商標: |
Tankii |
型番: |
Ni80Al20 |
スプール: |
DIN300 |
製品タイプ: |
ワイヤー |
輸送パッケージ: |
15kg/スプール、紙のカートン、合板箱 |
仕様: |
RoHS、ISO 9001:2008 |
HSコード: |
7505220000 |
商標: |
Tankii |
Description

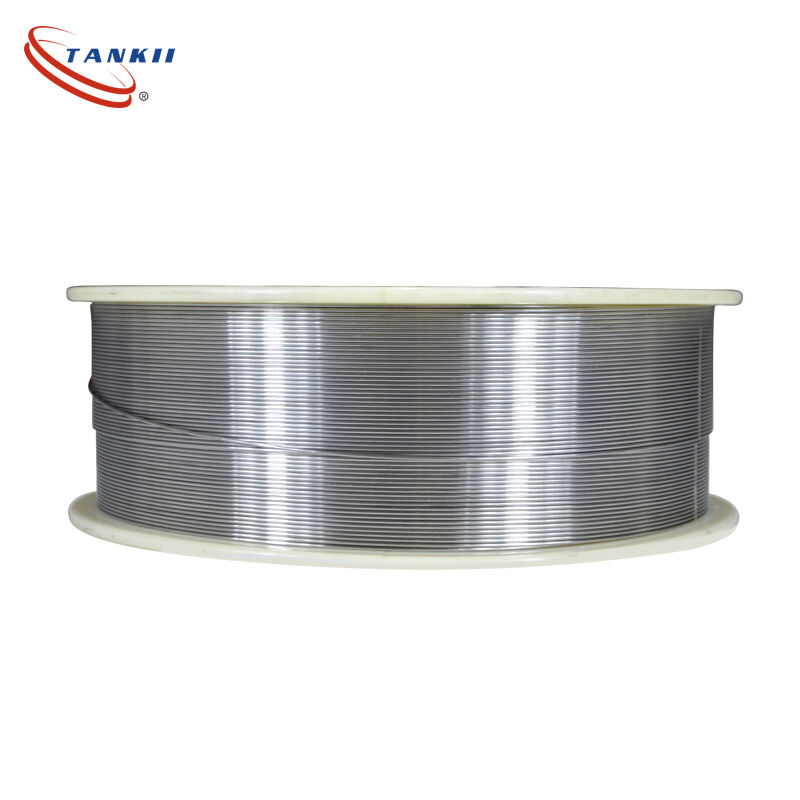

NiAl 80/20 is a solid thermal spray wires, It can be use as bond coatings and for machine element restoration widely. The materials show an exothermic reaction during the spray process, Also can produce dense coatings with exceptionally high bond strengths that self-bond to most metallic substrates and can tolerate elevated temperatures and oxidizing atmospheres. Our Nickel Aluminum 80/20 thermal spray wires can equivalent to: Sulzer Metco 405, Tafa 79B, Nickel Aluminium 80/20. It is specifically designed for arc spray sysytems.
Applications
Bond coatings.
Dimensional Restoration.
Fretting resistance ar high and low temperatures.
Particle erosion resistance at high temperatures.
High-temperature anti-corrosive coating.
| Al | Ni | Mn | Ti | Si | Fe | Cu | C |
| 19~21 | Bal. | Max0.3 | Max0.4 | Max0.3 | Max0.5 | Max0.2 | Max0.005 |
| Coating Hardness | HV 243 |
| Bonding Strength | 68.95 N/mm2 |
| Deposit Rate | 10 lbs/hr/100A |
| Condition | Solid Wire |
| Density.g/cm3 | Normal size.mm | Melting point.ºC |
| 8.5 | 1.6mm-3.2mm | 1450 |
| Typical Hardness | HRB 75 |
| Bonding Strength | Min 55Mpa |
| Deposit Rate | 10 lbs/hr/100A |
| Deposit Efficiency | 70% |
| Wire Coverage | 0.9 oz/ft2/mil |
NiAl 95/5 is an austenitic nickel-aluminium alloy (NiAl alloy) for use in arc and flame spray systems. The alloy produces dense, well bonding coatings.
Typical applications for NiAl95/5 are bond coats, as protective coatings against high-temperature oxidation, protective coatings against scaling of conventional iron base alloys and as build-up coatings for dimensional restoration.
