プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO 9001
モデル番号: Ni200、Ni201
支払及び船積みの言葉
最小注文数量: 10KG
価格: 交渉可能
パッケージの詳細: スプール
受渡し時間: 15-20日
支払条件: T/T
供給の能力: 500トン/年

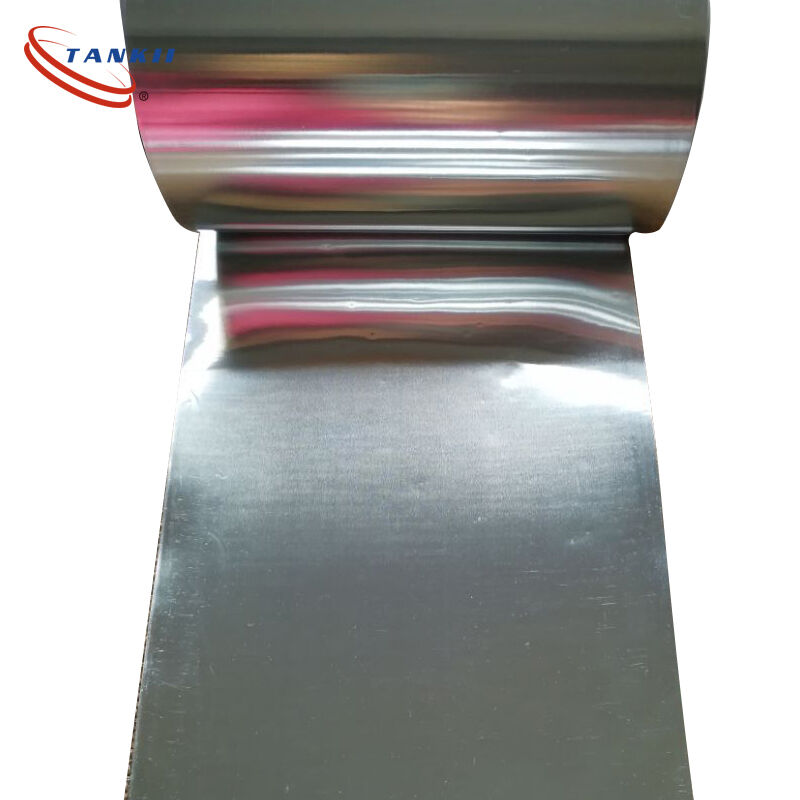

Pure Nickel Foil For The Electronic Industry
General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Alloy | Ni% | Mn% | Fe% | Si% | Cu% | C% | S% |
| Nickel 200 | Min 99.2 | Max 0.35 | Max 0.4 | Max 0.35 | Max 0.25 | Max 0.15 | Max 0.01 |
Physical Data
| Density | 8.89g/cm3 |
| Specific Heat | 0.109(456 J/kg.ºC) |
| Electrical Resistivity | 0.096×10-6ohm.m |
| Melting Point | 1435-1446ºC |
| Thermal Conductivity | 70.2 W/m-K |
| Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties
| Mechanical Properties | Nickel 200 |
| Tensile Strength | 462 Mpa |
| Yield Strength | 148 Mpa |
| Elongation | 47% |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| ASTM | ASTM B160 | ASTM B564 | ASTM B161/B163/B725/B751 | AMS B162 | ASTM B166 |
