プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO9001
モデル番号: 0CR23AL5
支払及び船積みの言葉
最小注文数量: 20kg
価格: 交渉可能
受渡し時間: 15～20日
支払条件: T/T
供給の能力: 100000T/年

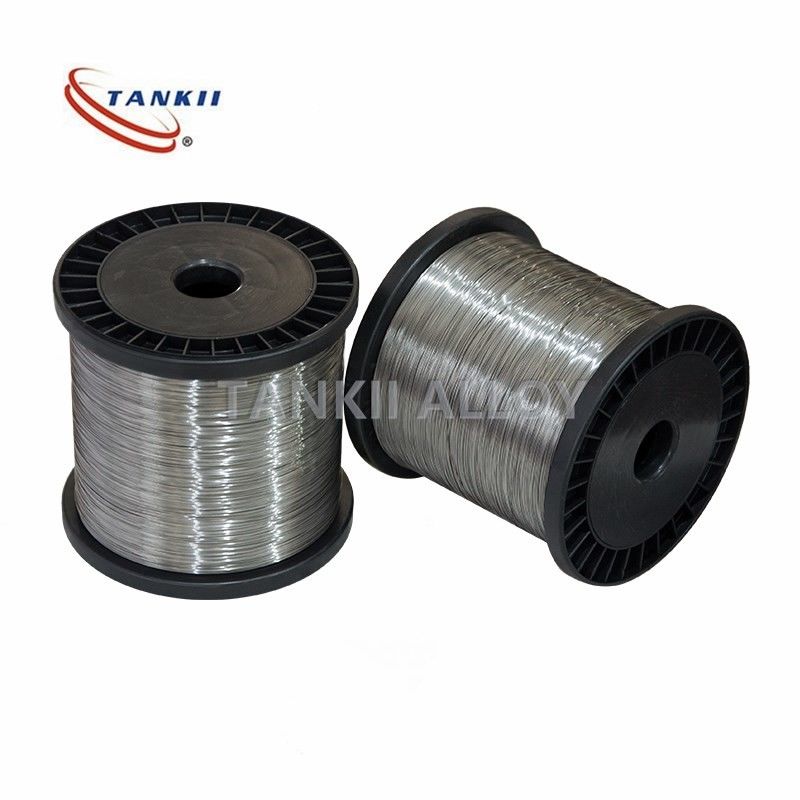

FeCr25Al5 wire Electrical High Temperature Heating Wire
1 Introduction for FeCrAl alloy heating wireD
Fe-Cr-Al alloy heating wire is mainly composed of ferrum,chromium,aluminium. It is widely used in various in many industries, such as metallurgical, chemical, glass, ceramic, and electrics for instance.
2 Features
| Features of FeCrAl alloy heating wire 0Cr25Al5 | |
| 1 | An excellent resistance to oxidation under heat |
| 2 | A limitation of intergranular oxidation |
| 3 | High electric resistance and long lifetime |
| 4 | Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution |
3 Application
| Applications of FeCrAl heating alloy wire | |
| 1 | industrial and civil heating-furnace |
| 2 | infrared equipment |
| 3 | liquefied gas infrared heat-resisting net |
| 4 | different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors |
4 Size
|
Size |
|
|
Wires |
0.018-10mm |
|
Ribbons |
0.05*0.2-2.0*6.0mm |
|
Strips |
0.5*5.0-5.0*250mm |
|
Bars |
D10-100mm |
Chemical Content, %
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
|
Max |
||||||||||
|
0.06 |
0.025 |
0.020 |
0.50 |
≤0.6 |
23.0-26.0 |
≤0.60 |
4.5-6.5 |
Balance |
- |
|
Mechanical Properties
|
Max Continuous Service Temperature: |
1250ºC |
Temperature Factor of Electrical Resistivity
|
20ºC |
100ºC |
200ºC |
300ºC |
400ºC |
500ºC |
600ºC |
|
1.000 |
1.002 |
1.005 |
1.008 |
1.013 |
1.021 |
1.030 |
|
|
||||||
|
700ºC |
800ºC |
900ºC |
1000ºC |
1100ºC |
1200ºC |
1300ºC |
|
1.038 |
1.040 |
1.042 |
1.044 |
1.046 |
1.047 |
1.047 |
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.
If you have any requirement, pls be free to contact with us.
