プロダクト細部
起源の場所: 上海
ブランド名: TANKII
証明: ISO9001
モデル番号: NCHW-1
支払及び船積みの言葉
最小注文数量: 30kg
価格: usd+28+kg
パッケージの詳細: 標準パッケージ
受渡し時間: 8-20日
支払条件: L/C、T/T、ウェスタン・ユニオン
供給の能力: 200+TON+MONTH
モデルいいえ。: |
NCHW-1 |
材料: |
ニッケル、クロム |
HSコード: |
75062000 |
モデルいいえ。: |
NCHW-1 |
材料: |
ニッケル、クロム |
HSコード: |
75062000 |

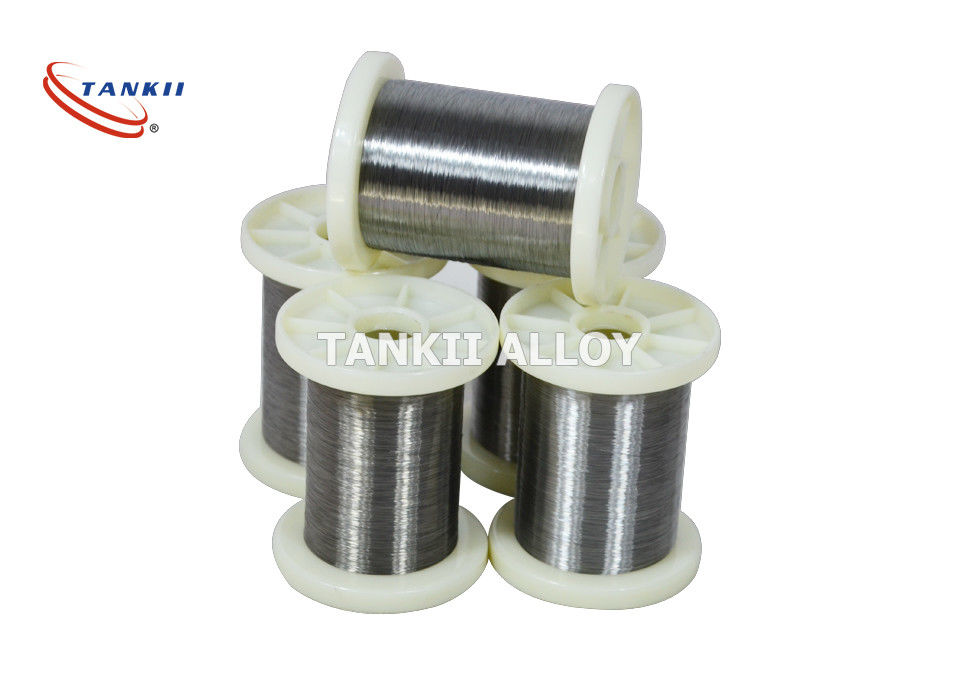

Nikrothal 80 High Resistance Wire Nicr 80/20 Wire
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Pls be free to contact us if there is any question.
Designation | Components | |||||||
Ni | Fe | Zn | Mn | Cu | AI | Cr | Si | |
CN49 | 40~50 | 2.5 Max | rem | |||||
CN30 | 21~24 | 1.0 Max | rem | |||||
CN15 | 10~13 | 1.0 Max | rem | |||||
CN10 | 5~7 | 0.5 Max | rem | |||||
CN5 | 2~2.5 | 0.5 Max | rem | |||||
NCHW-1 | 77 Min | 2.5 Max | 19~21 | 0.75~1.5 | ||||
NCHW-2 | 57 Min | 1.5 Max | 15~18 | 0.75~1.5 | ||||
FCHW-1 | rem | 1.0 Max | 4.0~6.0 | 23~26 | 1.5 Min | |||
FCHW-2 | rem | 1.0 Max | 2.0~4.0 | 17~22 | 1.5 Min |
