プロダクト細部
起源の場所: 中国上海
ブランド名: TANKII
証明: ISO9001 SGS
モデル番号: C5100
支払及び船積みの言葉
最小注文数量: 100 kg
価格: 交渉可能
パッケージの詳細: スプール+カートン+ Woonedの場合
受渡し時間: 7-20日
支払条件: L/C、T/T、Western Union
供給の能力: 1ヶ月あたりの300トン
モデル: |
C51000 |
合金か 合金でないか: |
合金 |
タイプ: |
青銅色ワイヤー |
直径: |
0.05ミリ~10.0ミリ |
応用: |
アンテナスプリング ハードウェア加工 |
ブランド名: |
TANKII |
表面: |
明るい表面 |
学年: |
クーSn5 |
モデル: |
C51000 |
合金か 合金でないか: |
合金 |
タイプ: |
青銅色ワイヤー |
直径: |
0.05ミリ~10.0ミリ |
応用: |
アンテナスプリング ハードウェア加工 |
ブランド名: |
TANKII |
表面: |
明るい表面 |
学年: |
クーSn5 |

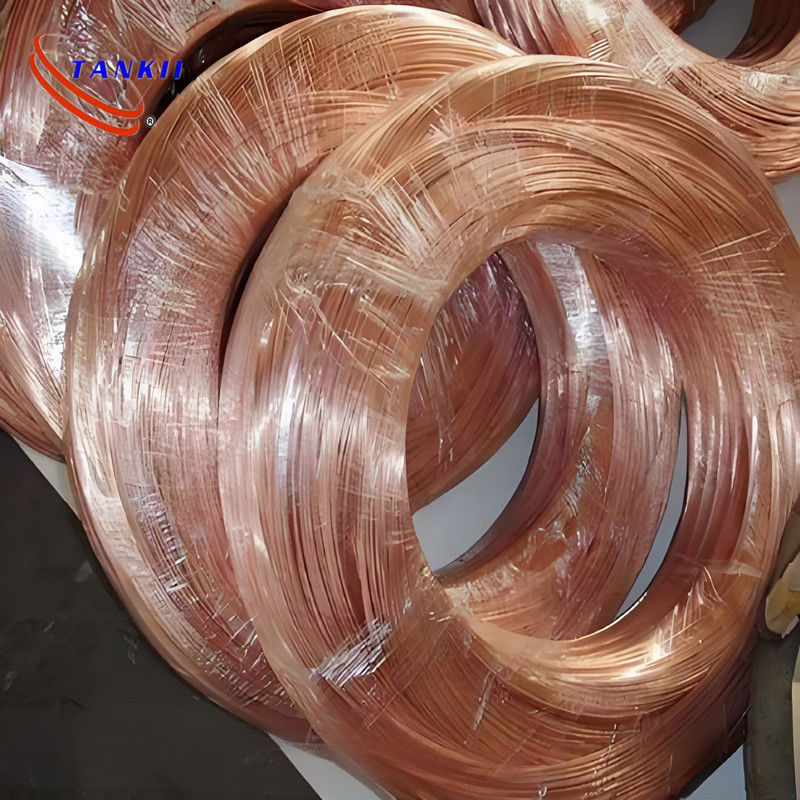

ASTM B139 C51000 c52100 phosphor bronze wire c51000
C51000 C52100 C52400 C53400 C54400 PHOSPHOR BRONZE
C51000 phosphor bronze has excellent cold processing property.The C51000 phosphor bronze is mainly used as bellows, pressure gauge tube, diaphragm, clutch disc, fastener disc, fastener, locking hot ring, and textile machinery parts
we have our own cooperative copper factory,mainly do aluminum bronze and brass,both have sheet,bar,pipe and wire
Standard: GB/T 5231-2001
QSn8-0.3 features and scope of application
QSn8-0.3 aluminum bronze iron, high strength and friction reduction, good corrosion resistance, pressure and good processability in thermal state, can be electric welding and gas welding,stannum bronze can be used as high tin wear-resistant bronze. With high strength, good anti-friction, and excellent corrosion resistance in the atmosphere, fresh water, and seawater, suitable for heat processing and welding.
Chemical composition of QSn8-0.3
Sn:7.0-9.0
P:0.03-0.35
Zn:≤0.20
Ni:≤0.20
Fe:≤0.01
Pb:≤0.05
Cu:REST
Note: the tensile mechanical properties at room temperature of the longitudinal bars
QAl9-4 heat treatment specification: thermal processing temperature 750 ~ 850 °C; annealing temperature 700 ~ 750 °C; quenching temperature 850 °C water; tempering temperature 500 ~ 550 °C.
| Brand Name | Material Composition | Size(Diameter) | |||||||||||||
| Bronze | Aluminum bronze | QAl9-2(C61200) | QAl9-4(C61400) | QAl9-5-1-1 | QAl10-3-1.5(C62300) | QAl10-4-4(C63000) | 10-180(mm) | ||||||||
| Tin bronze | QSn4-4-4 | QSn7-0.2 | QSn6.5-0.1(C51900) | QSn4-3-0.3(C51100) | QSn6.5-0.4(C51500) | 10-60 | |||||||||
| Silicon bronze | QSi3-1 | QSi1-3 | C65100 | CuNi2Si | C54400 | 10-60 | |||||||||
| Copper-Nickel alloy | Nickel -Znic Alloy | BZn15-20 | BZn15-21-1.8 | BZn15-24-1.5 | 15-50 | ||||||||||
| Aluminum cuoronickel | BAl13-3 | BAl6-1.5 | 15-50 | ||||||||||||
| Brass | Ordinary brass | H90(C22000) | H68(C26200) | H62(C27400) | H63(C27200) | H70(C26200) | 20-180 | ||||||||
| Iron brass | HFe58-1-1 | HFe59-1-1 | 10-180 | ||||||||||||
| Pb Brass | HPb63-0.1 | HPb62-0.8(C35000) | HPb59-1(C37000) | HPb62-2(C35300) | HPb60-2(C37700) | 10-180 | |||||||||
| Aluminum brass | HAl67-2.5 | HAl60-1-1 | HAl59-3-2 | HAl66-6-3-2 | 10-180 | ||||||||||
| Nickel-silver | HNi65-5 | HNi56-3 | 10-180 | ||||||||||||
| Manganese brass | HMn58-2 | H57-3-1 | HMn55-3-1 | HMn60-3-1-0.75 | 10-180 | ||||||||||
| Tin Brass | HSn62-1 | HSn60-1 | 10-180 | ||||||||||||
| Silicon Brass | HSi80-3 | C64200 | |||||||||||||
