プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO 9001
モデル番号: フィクラル134
支払及び船積みの言葉
最小注文数量: 5kg
価格: Negotatioin
パッケージの詳細: スロール coil 木製ケース
受渡し時間: 5-25DAYS
支払条件: T/T、ウェスタンユニオン
供給の能力: 20000kg/週
名前: |
フィクラル134 |
材料: |
葉の合金 |
サイズ: |
カスタマイズ |
応用: |
エッチング |
Moq: |
20kg |
形: |
ストリップ |
表面: |
明るい |
名前: |
フィクラル134 |
材料: |
葉の合金 |
サイズ: |
カスタマイズ |
応用: |
エッチング |
Moq: |
20kg |
形: |
ストリップ |
表面: |
明るい |

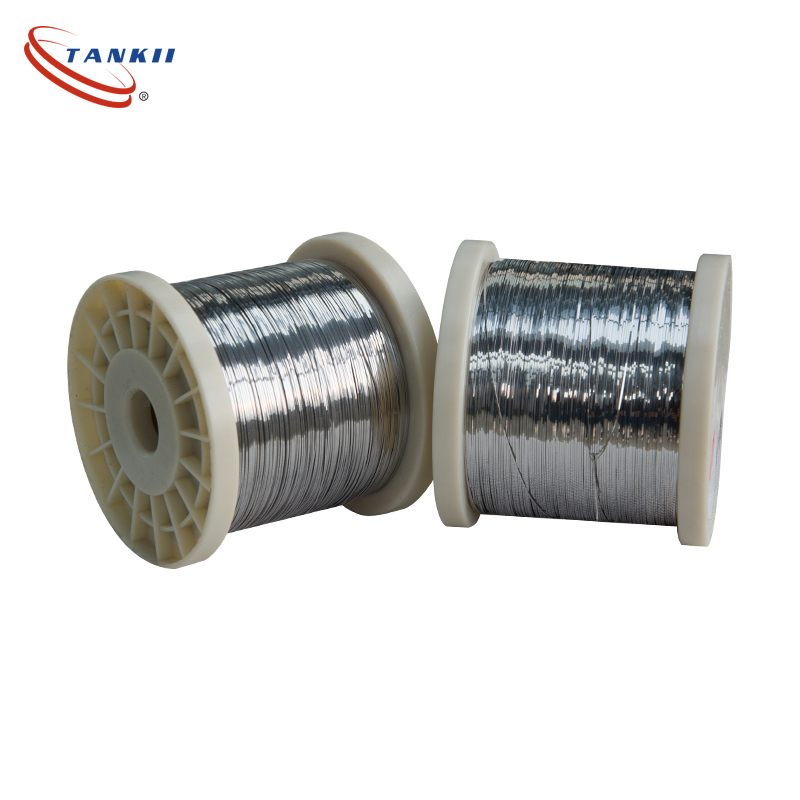

Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower pr
| Grade | 1Cr13Al4 | TK1 | 0Cr25Al5 | 0Cr20Al6Re | 0Cr23Al5 | 0Cr19Al3 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
|
Nominal composition % |
Cr | 12.0-15.0 | 22.0-26.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 5.0-7.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | 0.04-1.0 | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | ||
| Nb0.5 | Mo1.8-2.2 | ||||||||
| Resistivity 20ºC | 1.25 | 1.48 | 1.42 | 1.40 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm³) | 7.4 | 7.1 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Max continuous operating temperature(ºC) | 650 | 1400 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1
Max working temperature: 1250~1400°c
Resistivity: 1.35~1.5 mm2 Ω/m
Diameter 6mm~14mm usually
SHANGHAI TANKII ALLOY MATERIAL CO., LTD
MOST PROFESSIONAL ALCHROME AND FECRAL ALLOY PRODUCER IN CHINA
