プロダクト細部
起源の場所: 中国本土
ブランド名: Tankii
証明: ISO9001
モデル番号: ニクローム
支払及び船積みの言葉
最小注文数量: 交渉可能
価格: 交渉可能
パッケージの詳細: 標準的なexoprtのパッケージ
受渡し時間: 支払いの20日後
支払条件: T/T、Paypal、ウェスタン・ユニオン、MoneyGram、
供給の能力: 1年ごとの1000Ton
アイテム: |
ニッケルクロム N8 ホイル 超薄 0.005mm |
材料: |
NICR合金 |
表面: |
明るい |
厚さ: |
0.005mm以上 |
リーディングタイム: |
注文数量に応じて 20 日 |
応用: |
耐歪性材料 |
粉末 か ない か: |
粉末ではない |
Moq: |
20kg |
アイテム: |
ニッケルクロム N8 ホイル 超薄 0.005mm |
材料: |
NICR合金 |
表面: |
明るい |
厚さ: |
0.005mm以上 |
リーディングタイム: |
注文数量に応じて 20 日 |
応用: |
耐歪性材料 |
粉末 か ない か: |
粉末ではない |
Moq: |
20kg |

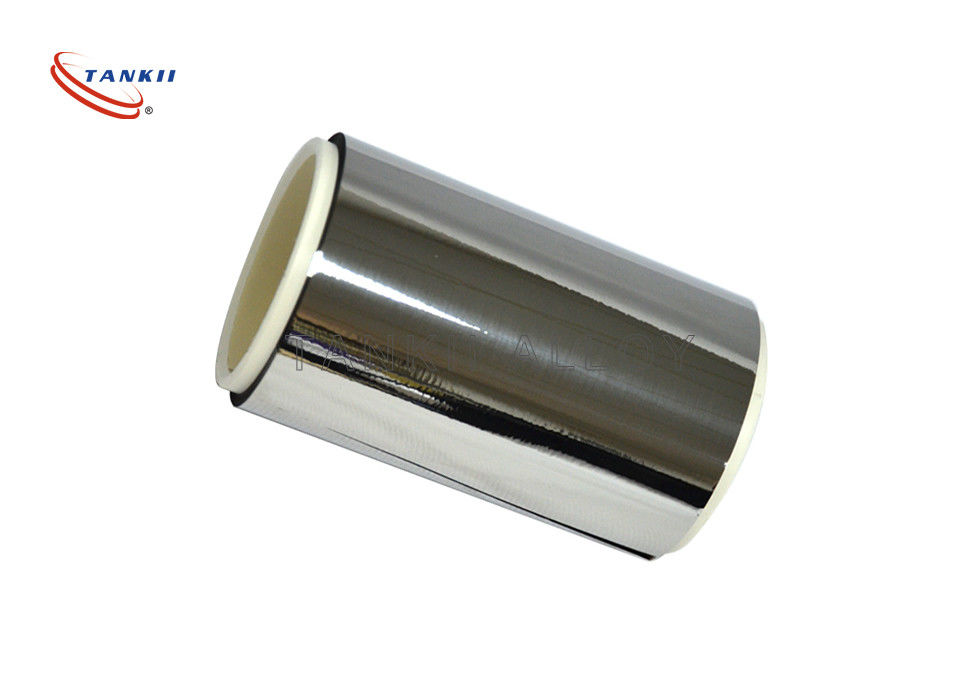

NiChrome N8 Foil Super Thin 0.005mm Used For Resistance Strain Gauge / Sensing Element
The main component of nichrome alloy is nickel, with a content usually exceeding 50%. In addition, it also contains elements such as iron, chromium, molybdenum, and copper. These elements are alloyed in a certain proportion to achieve the multifunctionality of the material:
Nickel: Provides a substrate to ensure basic performance of corrosion resistance and high temperature resistance.
Chromium: enhances the oxidation resistance and corrosion resistance of alloys.
Molybdenum: enhances the overall hardness and stress corrosion cracking resistance of alloys.
Copper: improves conductivity and antibacterial properties, enhances mechanical strength.
Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil- forming ability.it is an ideal material,it has good ductility,workability and weldability under high temperature and seismic strength.
Common Names :Karma, Evanohm, Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.
NiCr series: Karma, Evanohm, Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30.
1. Size dimension range:
Foil: Tailor-made
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Key Features of nichrome products:
Propertes/Grade |
Karma |
NiCr 80/20 |
NiCr 70/30 |
NiCr 60/15 |
NiCr 35/20 |
NiCr 30/20 |
|
Main Chemical Composition(%) |
Ni |
Bal. |
Bal. |
Bal. |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
Cr |
19~21.5 | 20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
Fe |
2~3 | ≤ 1.0 |
≤ 1.0 |
Bal. |
Bal. |
Bal. |
|
| Al | 2.7~3.2 | ||||||
| Mn | 0.5~1.5 | ||||||
Max Working Temperature(ºC) |
300 | 1200 |
1250 |
1150 |
1100 |
1100 |
|
Resistivity at 20ºC (μ Ω · m) |
1.33 | 1.09 |
1.18 |
1.12 |
1.04 |
1.04 |
|
Density(g/cm3) |
8.1 | 8.4 |
8.1 |
8.2 |
7.9 |
7.9 |
|
Thermal Conductivity (KJ/m· h· ºC) |
46 | 60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
Coefficient of Thermal Expansion(α × 10-6/ºC) |
- | 18 |
17 |
17 |
19 |
19 |
|
Melting Point(ºC) |
1400 | 1400 |
1380 |
1390 |
1390 |
1390 |
|
Elongation(%) |
10~20 | > 20 |
> 20 |
> 20 |
> 20 |
> 20 |
|
Micrographic Structure |
austenite | austenite |
austenite |
austenite |
austenite |
austenite |
|
Magnetic Property |
Non | nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
|
2. Products and services
1> ROHS cerfication;
2.> Small orders are accepted;
3.> Factory direct sale;
4.> Timely delivery;
5> Samples are available;
3 Features
1>. Good oxidation resistance;
2> . Low embrittlement at high temperature;
3.> Good plasticity(easier to give them a shape);
4> . Nice performance and processing;
4 Applications
It is mainly used to manufacture precision resistor components for various measuring instruments and meters, such as high-precision resistors, strain gauges and micro resistor components. Due to its excellent physical properties, this material has wide applicability in the field of industrial instrument manufacturing.
