プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: C1100
支払及び船積みの言葉
最小注文数量: 5kg
価格: 15-100USD/kg
パッケージの詳細: 場合
受渡し時間: 7-15日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 5000kg/月
厚さ: |
0.001-0.5mm |
幅: |
1-650mm |
MOQ: |
5kg |
製品名: |
C1100 |
パッキング: |
木製のケース |
サンプル: |
利用可能 |
品質: |
高品質 |
厚さ: |
0.001-0.5mm |
幅: |
1-650mm |
MOQ: |
5kg |
製品名: |
C1100 |
パッキング: |
木製のケース |
サンプル: |
利用可能 |
品質: |
高品質 |

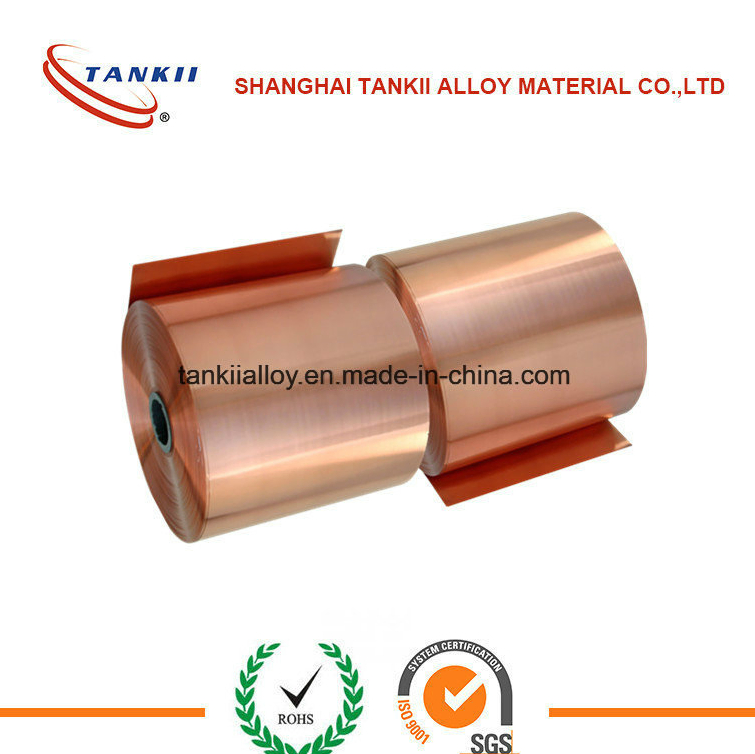

Super Pure Copper foil Cu ETP Foil-0.05mm*35mm
copper foil-0.05mm*35mm
Cu%99.90 C11000 Cu ETP
Min thickness:0.001mm
little order can accept
Specification of red copper strip we supply:
Strip: thick:0.15-3.0mm width:610mm
Plate:thick:0.5-3mm width:610mm Length:2500mm
With the assistance of our advanced technology, we offer quality range of Copper Strips and Plate. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
| Quality ltems | General Technical Terms | ||||||
| 1/3 OZ/ft 2 (12μ m) | 1/2 OZ/ft 2 (18μ m) | 3/4OZ/ft 2 25μ m | 1 OZ/ft 2 35μ m | 7/5 OZ/ft 2 (1.4μ m) | 2 OZ/ft 2 (70μ m) | ||
| Area Weight(g/) | 102-112 | 153 | 230 | 305 | 435 | 610 | |
| Tensile Strenght(kg/mm 2) | STD-E | ≥ 205 | ≥ 205 | ≥ 235 | ≥ 275 | ≥ 275 | ≥ 275 |
| HD-E | ≥ 17 | ≥ 103 | ≥ 156 | ≥ 205 | ≥ 205 | ≥ 205 | |
| Elongation(%) | STD-E | ≥ 2 | ≥ 205 | ≥ 3 | ≥ 3 | ≥ 3 | ≥ 3 |
| HD-E | ≥ 2 | ≥ 2.5 | ≥ 3 | ≥ 3 | ≥ 5 | ≥ 5 | |
| Surface Roughness(μ m) | Shiny Surface Ra | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 | ≤ 0.43 |
| Matte Surface Rz | 5 | 6 | 10 | 10 | 12 | 12 | |
| Peel Strength(Kg/cm) | ≥ 1.1 | ≥ 1.2 | ≥ 1.8 | ≥ 1.8 | ≥ 2.1 | ≥ 2.1 | |
| Leakage Poins(points/) | ≤ 5 | No | |||||
| High Temperature Anti-Oxidization Performance | Treat in the 200 constant temperature for 60 minutes, there is no oxidation stain | ||||||
