プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: ニッケルクロム線 3070
ドキュメント: Tankii Alloy Catalog.pdf
支払及び船積みの言葉
最小注文数量: 10kg
価格: 20-25USD/Kg
パッケージの詳細: 場合
受渡し時間: 10-15日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 500tons/Year
丸いワイヤの直径: |
0.018mm~10mm |
ニクロムリボン幅: |
5～0.5mm |
ニクロムリボンの厚さ: |
0.01-2mm |
受渡し時間: |
7-45 日 |
丸いワイヤの直径: |
0.018mm~10mm |
ニクロムリボン幅: |
5～0.5mm |
ニクロムリボンの厚さ: |
0.01-2mm |
受渡し時間: |
7-45 日 |

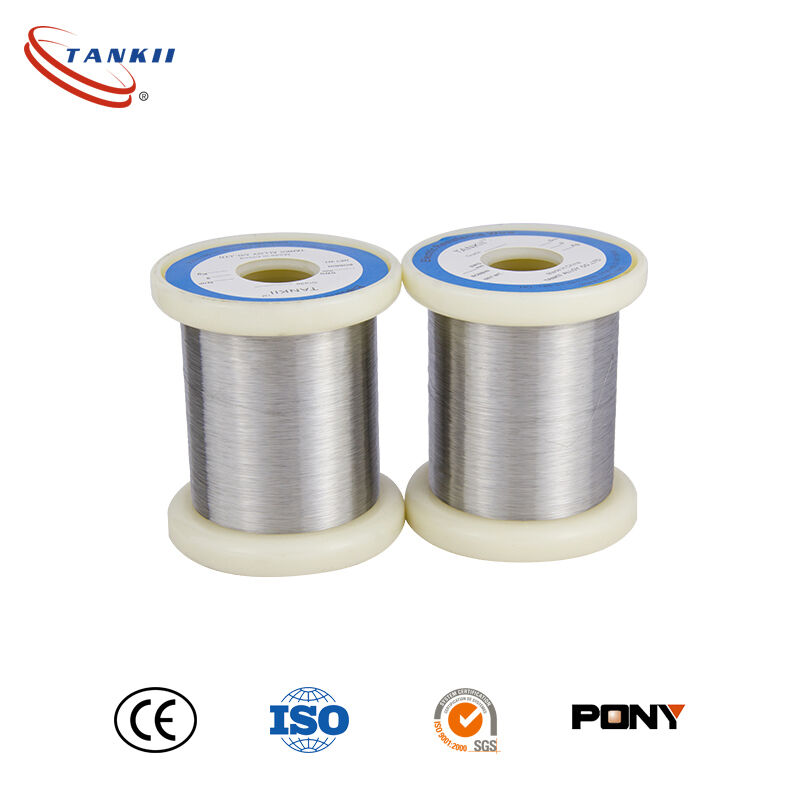

Nickel-Cromium Wire 3070 Nickel Wire With High Quality
Nichrome Round Wire: Diameter 0.018mm~10mm
Nichrome Ribbon: Width 5-0.5mm, thickness 0.01-2mm
Grade: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe
Nichrome's metallurgical structure confers them a very good plasticity when cold.
ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage: High quality,short delivery time,small MOQ.
Characteristics: Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.
| Chemical Composition and Main Properties of Nichrome | ||||||
| Properties Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition | Ni | Balance | Balance | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Balance | Balance | Balance | |
| Max Continuous Service Temperature (oC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resisivity 20oC (Ω mm2/m) |
1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) |
8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity (KJ/m@ h@ oC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion (α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point ( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation (%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | |
