プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: E型
ドキュメント: Tankii Alloy Catalog.pdf
支払及び船積みの言葉
最小注文数量: 10kg
価格: 20-50USD/Kg
パッケージの詳細: 場合
受渡し時間: 10-15日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 5000kg/月
導体: |
K、J、T、E、N、 |
dia: |
0.05～12mmm |
表面: |
明るい/酸化した |
アイテム: |
裸熱電対ワイヤ タイプ E NiCr コンスタンタン経由 |
導体: |
K、J、T、E、N、 |
dia: |
0.05～12mmm |
表面: |
明るい/酸化した |
アイテム: |
裸熱電対ワイヤ タイプ E NiCr コンスタンタン経由 |

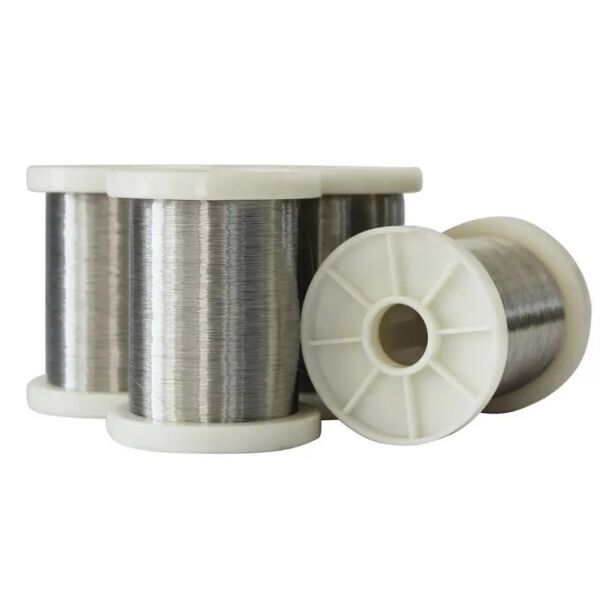

Bare Thermocouple Wire type E NiCr via constantan
What's E type thermocouple wire ?
NiCr- CuNi thermocouple (type E) is also named NiCr-Constantan thermocouple. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.
Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.
Detailed Parameter of thermocouple wire
| Chemical Composition | |||||
| Conductor Name | Polarity | Code | Nominal Chemical Composition /% | ||
| Ni | Cr | Cu | |||
| NiCr | Positive | EP | 90 | 10 | -- |
| Cu-Ni(Constantan) | Negative | EN | 45 | -- | 55 |
| Working Temperature Range | ||
| Diameter/mm | Long time Working temperature /ºC | Short period Working temperature /ºC |
| 0.3, 0.5 | 350 | 450 |
| 0.8, 1.0, 1.2 | 450 | 550 |
| 1.6, 2.0 | 550 | 650 |
| 2.5 | 650 | 750 |
| 3.2 | 750 | 900 |
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: By sea/ air. About 7 days, as the order quantity of thermocouple wire.
