プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: NICR8020
ドキュメント: Tankii Alloy Catalog.pdf
支払及び船積みの言葉
最小注文数量: 20KG
価格: 20-35USD/Kg
パッケージの詳細: 場合
受渡し時間: 20-25DAYS
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 5000kg/月
主な使用法: |
抵抗器、ヒーター、炉 |
学年: |
NICR8020 |
合金OTRではない: |
合金 |
表面: |
明るい |
一連の合金: |
Ni80Cr20、Ni70Cr30、Ni60Cr23、Ni60Cr15、Ni35Cr20、カルマ |
定名組成: |
Ni:80、Cr:20 |
主な使用法: |
抵抗器、ヒーター、炉 |
学年: |
NICR8020 |
合金OTRではない: |
合金 |
表面: |
明るい |
一連の合金: |
Ni80Cr20、Ni70Cr30、Ni60Cr23、Ni60Cr15、Ni35Cr20、カルマ |
定名組成: |
Ni:80、Cr:20 |

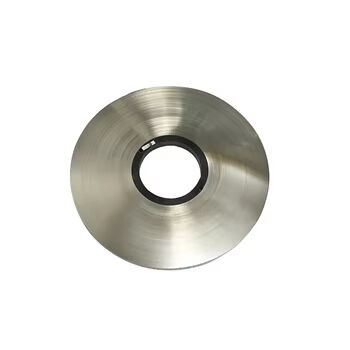

NiCr8020 Alloy strip Nickel 80% Chrome 20% Strip/tape
1.>Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
2.>Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1
We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma
3.>Chemical Composition and Propertes:
Propertes/Grade |
NiCr 80/20 |
NiCr 70/30 |
NiCr 60/15 |
NiCr 35/20 |
NiCr 30/20 |
|
Main Chemical Composition(%) |
Ni |
Bal. |
Bal. |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
Cr |
20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
Fe |
≤ 1.0 |
≤ 1.0 |
Bal. |
Bal. |
Bal. |
|
Max Working Temperature(ºC) |
1200 |
1250 |
1150 |
1100 |
1100 |
|
Resistivity at 20ºC (μ Ω · m) |
1.09 |
1.18 |
1.12 |
1.04 |
1.04 |
|
Density(g/cm3) |
8.4 |
8.1 |
8.2 |
7.9 |
7.9 |
|
Thermal Conductivity (KJ/m· h· ºC) |
60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
Coefficient of Thermal Expansion(α × 10-6/ºC) |
18 |
17 |
17 |
19 |
19 |
|
Melting Point(ºC) |
1400 |
1380 |
1390 |
1390 |
1390 |
|
Elongation(%) |
> 20 |
> 20 |
> 20 |
> 20 |
> 20 |
|
Micrographic Structure |
austenite |
austenite |
austenite |
austenite |
austenite |
|
Magnetic Property |
nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
|
Product: Nichrome Strip/Nichrome Tape/Nichrome Sheet/Nichrome Plate
Grade: Ni80Cr20/Resistohm 80/Chromel A
Chemical Composition: Nickel 80%, Chrome 20%
Resistivity: 1.09 ohm mm2/m
Condition: Bright, Annealed, Soft
Surface: BA, 2B, polished
Dimension: Width 1~470mm, Thickness 0.005mm~7mm
We also produce NiCr 60/15, NiCr 38/17, NiCr 70/30, NiCr AA, NiCr 60/23, NiFe80, NiFe50, NiFe42,NiFe36, etc.
