プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: Ni80Cr20
ドキュメント: Tankii Alloy Catalog.pdf
支払及び船積みの言葉
最小注文数量: 10kg
価格: 20-30USD/KG
パッケージの詳細: 場合
受渡し時間: 15-20日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 5000kg/月
断熱材の色: |
赤、緑、黄、黒、青、自然など |
輸送パッケージ: |
合板パレットまたは木製ケースに梱包してください |
起源: |
上海 |
生産能力: |
1トン/月 |
型番: |
Ni80Cr20 |
断熱材の色: |
赤、緑、黄、黒、青、自然など |
輸送パッケージ: |
合板パレットまたは木製ケースに梱包してください |
起源: |
上海 |
生産能力: |
1トン/月 |
型番: |
Ni80Cr20 |

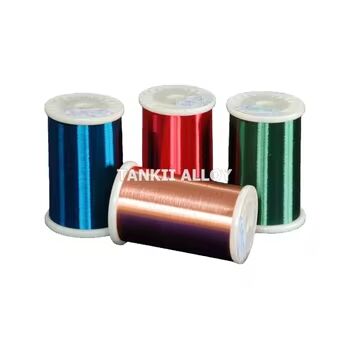

0.05mm Enamelled Nichrome Ni80Cr20 Wire
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare alloy wire
| Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
| Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
| Any copper alloy and nickel alloy is available | ||
Color of enameled insulation:
| Red,Green,Yellow,Black,Blue,Nature etc. |
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
Style of supply
| Alloys Name | Type | Dimension | ||
| Enameled-W | Wire | D=0.018mm~3mm | ||
| Enameled-R | Ribbon | W=0.4~24 | T=0.01~0.2mm | |
Dimension of insulation
| D mm |
Min thickness of insulation | Max OD of Enameled | ||
| I | II | I | II | |
| 0.02 | 0.005 | 0.009 | 0.09 | 0.036 |
| 0.022 | 0.005 | 0.019 | 0.032 | 0.038 |
| 0.025 | 0.006 | 0.010 | 0.036 | 0.042 |
| 0.028 | 0.006 | 0.010 | 0.039 | 0.045 |
| 0.030 | 0.006 | 0.011 | 0.042 | 0.048 |
| 0.032 | 0.006 | 0.011 | 0.044 | 0.050 |
| 0.036 | 0.007 | 0.012 | 0.049 | 0.055 |
| 0.040 | 0.007 | 0.012 | 0.053 | 0.060 |
| 0.045 | 0.008 | 0.013 | 0.059 | 0.066 |
| 0.050 | 0.008 | 0.014 | 0.064 | 0.072 |
| 0.056 | 0.009 | 0.015 | 0.071 | 0.079 |
| 0.060 | 0.009 | 0.016 | 0.076 | 0.084 |
| 0.063 | 0.009 | 0.016 | 0.080 | 0.088 |
| 0.071 | 0.010 | 0.017 | 0.089 | 0.097 |
| 0.080 | 0.011 | 0.018 | 0.099 | 0.108 |
| 0.090 | 0.012 | 0.019 | 0.111 | 0.120 |
| 0.100 | 0.012 | 0.021 | 0.122 | 0.132 |
| 0.112 | 0.012 | 0.021 | 0.135 | 0.146 |
| 0.125 | 0.014 | 0.023 | 0.150 | 0.161 |
| 0.140 | 0.015 | 0.024 | 0.166 | 0.179 |
| 0.150 | 0.016 | 0.025 | 0.177 | 0.191 |
| 0.160 | 0.017 | 0.028 | 0.188 | 0.202 |
| 0.180 | 0.018 | 0.028 | 0.210 | 0.225 |
| 0.200 | 0.019 | 0.030 | 0.231 | 0.248 |
| 0.224 | 0.021 | 0.032 | 0.258 | 0.275 |
| 0.250 | 0.022 | 0.034 | 0.285 | 0.304 |
| 0.280 | 0.024 | 0.036 | 0.318 | 0.338 |
| 0.300 | 0.025 | 0.037 | 0.339 | 0.360 |
| 0.315 | 0.026 | 0.038 | 0.356 | 0.376 |
| 0.355 | 0.027 | 0.041 | 0.398 | 0.420 |
| 0.400 | 0.028 | 0.043 | 0.445 | 0.468 |
| 0.450 | 0.030 | 0.048 | 0.498 | 0.524 |
| 0.500 | 0.031 | 0.049 | 0.551 | 0.578 |
| 0.560 | 0.034 | 0.052 | 0.615 | 0.643 |
| 0.600 | 0.035 | 0.054 | 0.657 | 0.686 |
| 0.630 | 0.038 | 0.056 | 0.689 | 0.718 |
| 0.710 | 0.038 | 0.059 | 0.773 | 0.805 |
| 0.00 | 0.041 | 0.062 | 0.869 | 0.902 |
| 0.900 | 0.043 | 0.066 | 0.973 | 1.010 |
| 1.000 | 0.048 | 0.070 | 1.079 | 1.117 |
| 1.120 | 0.049 | 0.074 | 1.205 | 1.247 |
| 1.250 | 0.053 | 0.080 | 1.343 | 1.387 |
| 1.400 | 0.058 | 0.085 | 1.499 | 1.548 |
| 1.500 | 0.059 | 0.090 | 1.605 | 1.654 |
