プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: Kタイプ)
支払及び船積みの言葉
最小注文数量: 10kg
価格: 20-30USD/Kg
パッケージの詳細: カサエ
受渡し時間: 10-30DAYS
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 5000kg/月
dia: |
0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mm |
表面: |
明るい/酸化した |
学年: |
Ⅰ/Ⅱ/Ⅲ |
抗張力: |
390 |
アイテム: |
裸線 熱電対線（Kタイプ） |
dia: |
0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mm |
表面: |
明るい/酸化した |
学年: |
Ⅰ/Ⅱ/Ⅲ |
抗張力: |
390 |
アイテム: |
裸線 熱電対線（Kタイプ） |

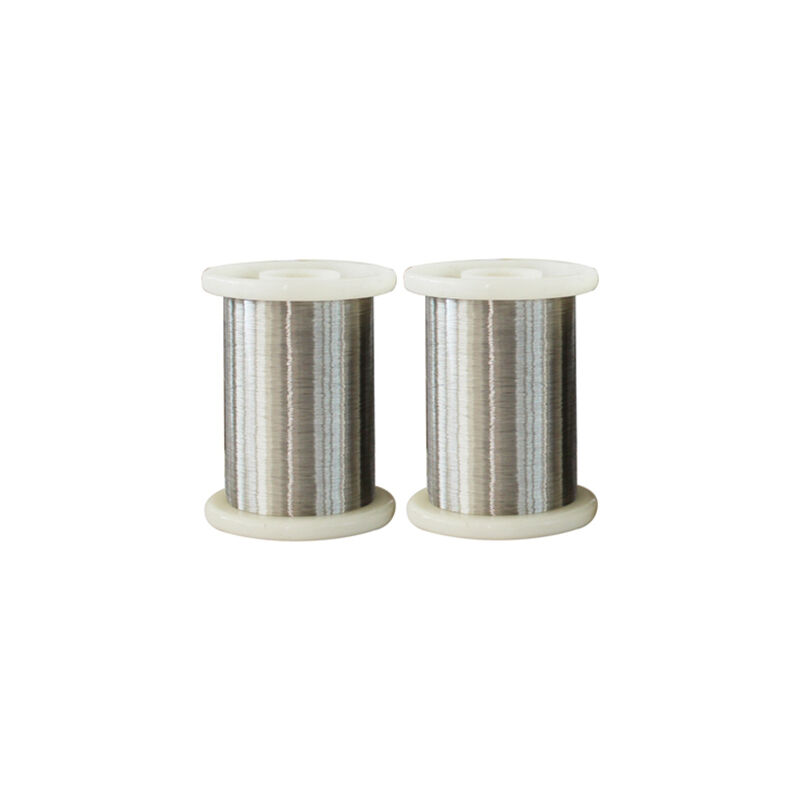

Chromel Alumel Bare wire Thermocouple Wire (K Type)
NiCr-Ni/NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.
Detailed Parameter
Chemical Composition |
|||||
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
Ni |
Cr |
Si |
|||
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
|
Working Temperature
|
||
Diameter/mm |
Long time Working temperature /ºC |
Short period Working temperature /ºC |
0.3 |
700 |
800 |
0.5 |
800 |
900 |
0.8,1.0 |
900 |
1000 |
1.2,1.6 |
1000 |
1100 |
2.0,2.5 |
1100 |
1200 |
|
3.2 |
1200 |
1300 |
