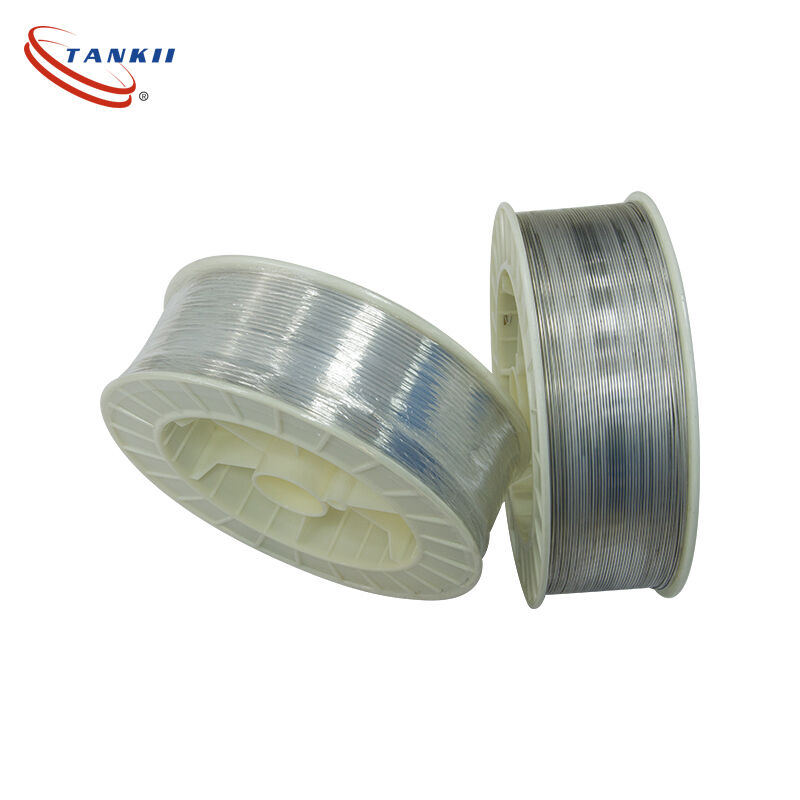

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

プロダクト細部

起源の場所: 中国

ブランド名: Tankii

証明: ISO9001

モデル番号: Ni95Al5

支払及び船積みの言葉

最小注文数量: 15KG

価格: 25-30USD/Kg

パッケージの詳細: ケース

受渡し時間: 10-15日

支払条件: T/T,Western Union,D/P,D/A,L/C

供給の能力: 500トン/月

最もよい価格を得なさい
今連絡してください
仕様
ハイライト:
モデル番号:
Ni95Al5 / NiAl-955 / TAFA 75B
材料:
ニッケルアルミニウム合金
応用:
溶射、ボンドコート、防食、高温保護
直径:
1.6mm / 2.0mm(±0.05mm)
伸長:
40%
融点:
1 390℃
使用温度:
1 300 °C (最高)
標準:
AMS 4778、ASTM B833、ISO 14919
包装:
15 kg DIN 300 プラスチック スプール、真空ホイル、カートン、パレット
モデル番号:
Ni95Al5 / NiAl-955 / TAFA 75B
材料:
ニッケルアルミニウム合金
応用:
溶射、ボンドコート、防食、高温保護
直径:
1.6mm / 2.0mm(±0.05mm)
伸長:
40%
融点:
1 390℃
使用温度:
1 300 °C (最高)
標準:
AMS 4778、ASTM B833、ISO 14919
包装:
15 kg DIN 300 プラスチック スプール、真空ホイル、カートン、パレット
記述
Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire
Product Name
Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire
Grade / Equivalent
NiAl 955, Ni95Al5, TAFA 75B, PMET 885, MEC 885
Wire Chemistry (wt %)
Ni ≥ 95 | Al 4-5 | C ≤ 0.02 | Mn ≤ 0.2 | Si ≤ 0.2 | Fe ≤ 0.5 | O ≤ 0.005 | Others ≤ 0.5
Available Diameters & Tolerance
1.6 mm (-0 / +0.05 mm) | 2.0 mm (-0 / +0.05 mm)
Other sizes on request.
Typical Physical & Spray Properties
  • Density: 8.83 g cm⁻³
  • Elongation: 40 %
  • Max. service temperature: 1 300 °C (short-term 1 390 °C)
  • As-sprayed hardness: 200-260 HV
  • Bond strength on mild steel: ≥ 55 MPa
  • Oxide content after spraying: ≤ 3 %
  • Surface finish: bright, smooth, free of draw-marks
Key Coating Characteristics
✔ Ultra-dense microstructure, porosity < 2 %
✔ Self-bonding to most iron & nickel-base substrates (no intermediate layer required)
✔ Forms in-situ Al₂O₃ scale → excellent high-temperature oxidation & corrosion resistance
✔ Outstanding thermal-shock & scuff resistance
Recommended Spray Parameters (Arc-Spray)
Voltage: 30-34 V | Current: 120-180 A | Air pressure: 0.55-0.65 MPa
Stand-off distance: 150-200 mm | Traverse speed: 200-400 mm s⁻¹
Main Applications
  • Bond coat for ceramic top-coats (ZrO₂, Al₂O₃, Cr₂O₃) on gas-turbine blades, piston rods, boiler tubes
  • Corrosion-resistant under-layer for chemical pump shafts, fan impellers, marine propellers
  • Restoration of worn glass-moulds, forging dies, paper dryer rolls
  • EMI shielding & conductive coatings in electronic housings
Packaging Options
  • 15 kg / 25 kg plastic spool (DIN 300) + vacuum foil + export carton
  • 50-250 kg steel coil, PE-wrapped + wooden pallet
  • Custom labelling & bar-coding available
Standards Conformance
AMS 4778, ASTM B833, ISO 14919, GB/T 30566
Shelf Life & Storage
5 years in original unopened packaging; store < 25 °C, RH < 60 %, away from acids & sulphur.
MOQ & Lead Time
15 kg; 3-5 days ex-factory for ≤ 500 kg, 7-10 days for ≤ 2 t.
HS Code
7505.22.00
