プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: 純ニッケル箔
支払及び船積みの言葉
最小注文数量: 30kg
価格: 25-40USD/Kg
パッケージの詳細: ケース
受渡し時間: 15-30日
支払条件: ウェスタンユニオン、T/T
供給の能力: 500トン/kg
電気抵抗（20°C）: |
6.97μΩ・cm |
熱伝導率: |
90.7W/m・K |
密度: |
8.89 - 8.9 g/cm3 |
融点: |
1453°C |
引張強さ（焼きなまし）: |
450～550MPa |
電気抵抗（20°C）: |
6.97μΩ・cm |
熱伝導率: |
90.7W/m・K |
密度: |
8.89 - 8.9 g/cm3 |
融点: |
1453°C |
引張強さ（焼きなまし）: |
450～550MPa |

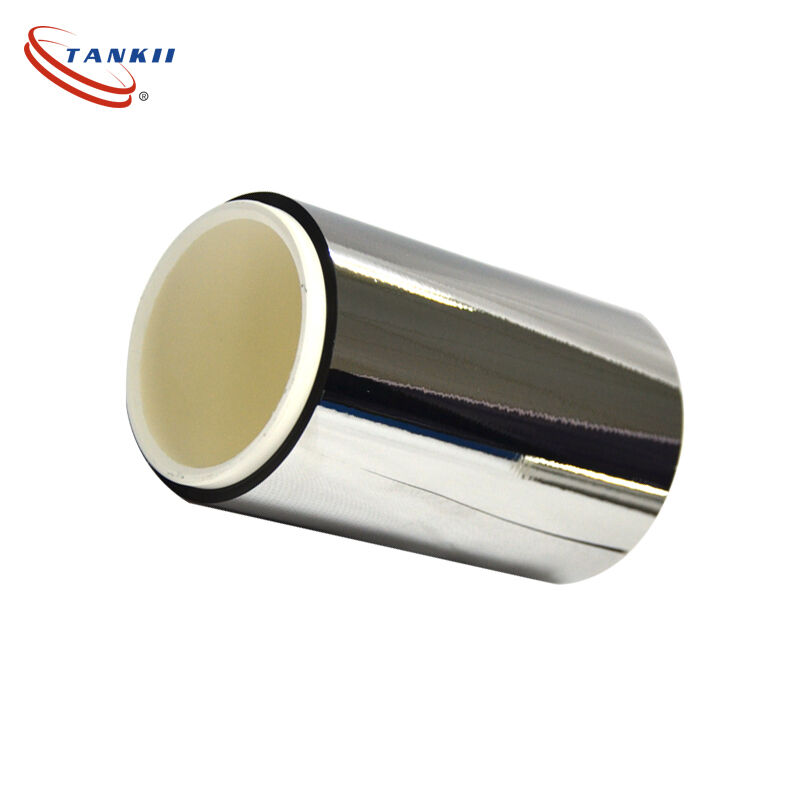

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil with purity >99.5% (typically 99.9% to 99.98%) is a critical material in the battery industry, primarily used as current collectors, battery tabs, connectors, and substrates for various battery chemistries. Grades include Nickel 200 (N02200), Nickel 201 (N02201), N4, N6, and ultra-high purity variants.
| Grade | Ni+Co (min) | Cu (max) | Fe (max) | Mn (max) | C (max) | Si (max) | S (max) | Purity Level |
|---|---|---|---|---|---|---|---|---|
| N4 | 99.9% | 0.015% | 0.04% | 0.002% | 0.01% | 0.03% | 0.001% | 99.9%
|
| N6 | 99.5% | 0.10% | 0.10% | 0.05% | 0.10% | 0.10% | 0.005% | 99.5%
|
| Nickel 200 (N02200) | 99.0% | 0.25% | 0.40% | 0.35% | 0.15% | 0.35% | 0.01% | 99.0%
|
| Nickel 201 (N02201) | 99.0% | 0.25% | 0.40% | 0.35% | 0.02% | 0.35% | 0.01% | 99.0%
|
| Ultra-High Purity | 99.98% | - | - | - | - | - | - | 99.98% |
| Electrical Resistivity (20°C) | 6.97 μΩ·cm
|
| Thermal Conductivity | 90.7 W/m·K |
| Density | 8.89 - 8.9 g/cm³ |
| Melting Point | 1453°C
|
| Boiling Point | 2732°C
|
| Curie Temperature | 360°C |
| Tensile Strength (Annealed) | 450 - 550 MPa
|
| Tensile Strength (Cold Rolled) | 550 - 800 MPa |
| Elongation | ≥15% |
| Hardness | 90-220 HV |
| Packaging | Plastic film + wooden case/pallet; coil packaging
|
| Paper Core ID | Ø200mm, Ø300mm, Ø400mm, Ø500mm, or custom
|
| MOQ | 1 kg (samples) to 500 kg (production)
|
| Delivery Time | 7-15 days (stock), 15-30 days (custom)
|
| Shipping Ports | Shanghai, Shenzhen, Ningbo, Mumbai |
