プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001
モデル番号: エナメルマンガニン線
支払及び船積みの言葉
最小注文数量: 10KG
価格: 25-35USD/KG
パッケージの詳細: 場合
受渡し時間: 10-30日
支払条件: T/T、ウェスタンユニオン、L/C
供給の能力: 2000kg/月
製品タイプ: |
ワイヤー |
炭素含有量: |
いいえ |
材料: |
6J12 |
温度クラス: |
130℃、155℃、180℃、200℃、220℃ |
絶縁: |
ポリウレタン (PU/UEW)、ポリエステル (PEW)、ポリエステルイミド (EIW)、ポリイミド (PIW)、ポリアミドイミド (PAI) |
製品タイプ: |
ワイヤー |
炭素含有量: |
いいえ |
材料: |
6J12 |
温度クラス: |
130℃、155℃、180℃、200℃、220℃ |
絶縁: |
ポリウレタン (PU/UEW)、ポリエステル (PEW)、ポリエステルイミド (EIW)、ポリイミド (PIW)、ポリアミドイミド (PAI) |

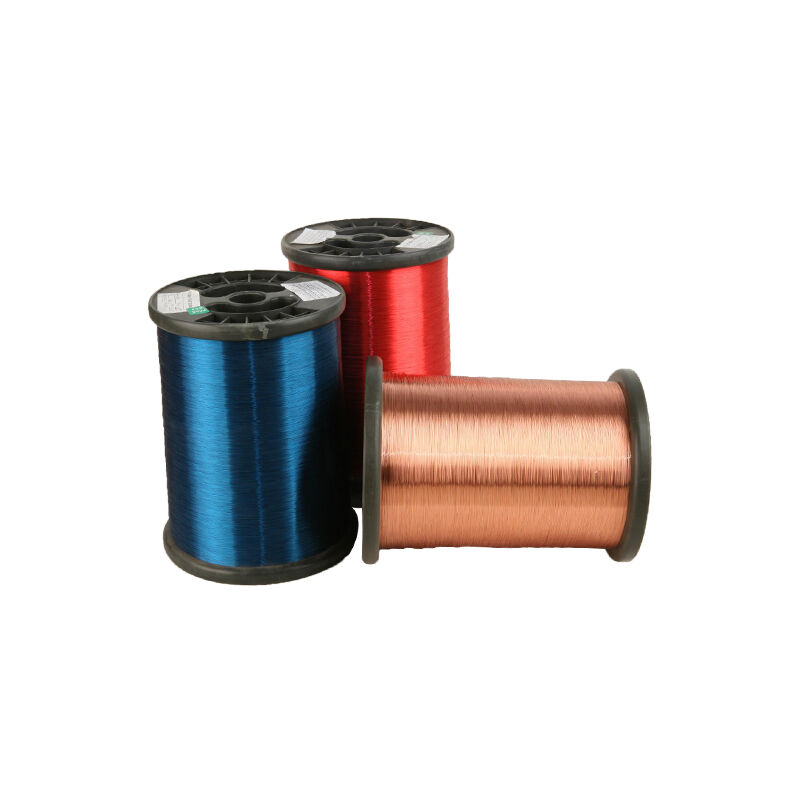

Enameled Manganin Wire /6j12 for Resistor
Enameled copper wire is a kind of magnet wire with insulation coating, widely used in motors, transformers, inductors, coils, relays and other electrical and electronic components. It features excellent heat resistance, dielectric strength, adhesion, flexibility and chemical resistance.
Manganin is a trademarked name for an alloy of typically 86%copper, 12%manganese, and 2%nickel.
Manganin foil and wire is used in the manufactur of resistor, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability.
Manganin is also used in gauges for studies of high-pressure shock waves (such as those generated from the detonation of explosives) because it has low strain sensitivity but high hydrostatic pressure sensitivity
Chemical Content, %
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2~3 | 11~13 | 0.5(max) | Micro | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 0-100ºC |
| Resisivity at 20ºC | 0.47±0.03ohm mm2/m |
| Density | 8.44 g/cm3 |
| Thermal Conductivity | -3~+20KJ/m·h·ºC |
| Temp Coefficient of Resistance at 20 ºC | -2~+2α×10-6/ºC(Class0) |
| -2~+2α×10-6/ºC(Class1) | |
| -2~+2α×10-6/ºC(Class2) | |
| Melting Point | 1450ºC |
| Tensile Strength(Hard) | 635 Mpa(min) |
| Tensile Strength,N/mm2 Annealed,Soft | 340~535 |
| Elongation | 15%(min) |
| EMF vs Cu, μV/ºC (0~100ºC) | 1 |
| Micrographic Structure | Austenite |
| Magnetic Property | Non |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
Application of Manganin
Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.
The data provided in this document is protected under applicable laws, including but not limited to copyright law and international agreements
Product size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
