プロダクト細部
起源の場所: 中国本土
ブランド名: Tankii
証明: ISO9001
モデル番号: ニクロム
支払及び船積みの言葉
最小注文数量: 交渉可能
価格: 交渉可能
パッケージの詳細: 標準的なexoprtのパッケージ
受渡し時間: 支払いの20日後
支払条件: T/T、ペイパル、ウェスタンユニオン、、
供給の能力: 1年ごとの1000Ton
アイテム: |
ニッケルクロム合金製平角線 |
材料: |
NICR合金 |
表面: |
明るい |
厚さ: |
0.005mm以上 |
リードタイム: |
注文数量に応じて 20 日 |
応用: |
耐歪性材料 |
粉末 か ない か: |
粉末ではない |
MOQ: |
20kg |
アイテム: |
ニッケルクロム合金製平角線 |
材料: |
NICR合金 |
表面: |
明るい |
厚さ: |
0.005mm以上 |
リードタイム: |
注文数量に応じて 20 日 |
応用: |
耐歪性材料 |
粉末 か ない か: |
粉末ではない |
MOQ: |
20kg |

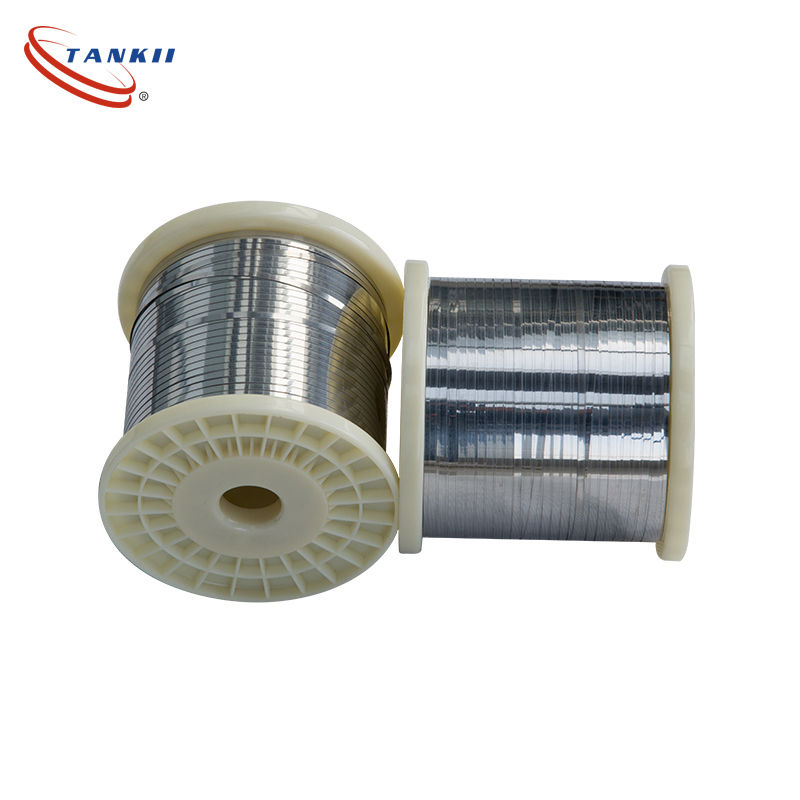

Tankii Flat Wires Made Of Nickel-Chromium Alloys Used For Home Appliance Heating Bodies
Comparison Table of Nickel-Chromium 1560 Flat Wire, Cr20Ni80 flat wire, and Iron-Chromium-Aluminum alloy flat wire:
| Item | Cr15Ni60(1560 Flat wire) | Cr20Ni80(2080 Flat wire) | FeCrAl(Cr25Al5 etc ) |
|---|---|---|---|
| Long-term use temperature | 1100℃ | 1200℃ | 1250–1350℃ |
| Resistivity | Medium-high | High | Highest |
| High-temperature strength | Good | Very Good | Poor, prone to deformation and sagging at high temperatures |
| Toughness / brittleness | Good toughness, not prone to brittle fracture | Best toughness | Prone to brittle fracture after high-temperature cooling, prone to breakage |
| Magnetism | Slight-magnetic | Non-magnetic | Weak magnetic / magnetic |
| Oxidation resistance | Good | Excellent | Very good (alumina film) |
| Sulfur resistance / corrosion resistance | General | Better | Poor, avoid processing and welding in sulfur-containing atmosphere |
| Processing and welding | Easy | Easy | general, brittle and prone to cracking |
Nickel-chromium 1560 (Cr15Ni60) is a classic high-temperature electrical heating alloy in the nickel-chromium series. Its core advantages include high resistivity, high-temperature stability, good oxidation resistance, and non-magnetic properties. In the form of flat wire, it is mainly used in scenarios such as planar/strip heating elements, industrial furnaces, and home appliance heating bodies.
1. Chemical composition (mass fraction) Ni: 58%–61% (providing high-temperature stability, corrosion resistance, and austenitic matrix) Cr: 14%–16% (forming a dense Cr₂O₃ protective film, enhancing high-temperature oxidation resistance) Fe: balance (≤8%), C≤0.1%, Si≤1.0%, Mn≤0.5%
2. Key physical/electrical properties
Density: 8.2 g/cm³
Melting point: 1380–1450℃
Resistivity (20℃): 1.04–1.12 μΩ・m (high resistivity, suitable for heat generation)
Maximum long-term use temperature: 1100–1200℃ (in air/neutral atmosphere)
Thermal expansion coefficient: approximately 12.4×10⁻⁶/℃ (20–1000℃)
Thermal conductivity: approximately 12–13 W/(m・K) (20℃)
3 .Unique Advantages of Flat Wires/Strips (Compared to Round Wires):
a . Faster Heat Dissipation and More Uniform Temperature: The flat cross-section has a large surface area, allowing heat to dissipate easily and reducing the risk of localized overheating.
b. Superior Fit and Installation: It can fit tightly against the heating surface, resulting in high heat conduction efficiency; it is easy to bend and shape, suitable for complex-shaped components.
c. Large Contact Area and Reliable Welding: The flat surface has low contact resistance, resulting in stronger welding/riveting, suitable for precision electrical appliances and sensors.
d. Fatigue Resistance and Longer Lifespan: The flat structure has better stress distribution, making it less prone to breakage under repeated on/off/thermal cycling.
e. Flexible Specifications: Thickness 0.025–2mm, Width 0.5–5mm (customizable), suitable for micro to high-power components.
Propertes/Grade |
Karma |
NiCr 80/20 |
NiCr 70/30 |
NiCr 60/15 |
NiCr 35/20 |
NiCr 30/20 |
|
Main Chemical Composition(%) |
Ni |
Bal. |
Bal. |
Bal. |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
Cr |
19~21.5 | 20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
Fe |
2~3 | ≤ 1.0 |
≤ 1.0 |
Bal. |
Bal. |
Bal. |
|
| Al | 2.7~3.2 | ||||||
| Mn | 0.5~1.5 | ||||||
Max Working Temperature(ºC) |
300 | 1200 |
1250 |
1150 |
1100 |
1100 |
|
Resistivity at 20ºC (μ Ω · m) |
1.33 | 1.09 |
1.18 |
1.12 |
1.04 |
1.04 |
|
Density(g/cm3) |
8.1 | 8.4 |
8.1 |
8.2 |
7.9 |
7.9 |
|
Thermal Conductivity (KJ/m· h· ºC) |
46 | 60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
Coefficient of Thermal Expansion(α × 10-6/ºC) |
- | 18 |
17 |
17 |
19 |
19 |
|
Melting Point(ºC) |
1400 | 1400 |
1380 |
1390 |
1390 |
1390 |
|
Elongation(%) |
10~20 | > 20 |
> 20 |
> 20 |
> 20 |
> 20 |
|
Micrographic Structure |
austenite | austenite |
austenite |
austenite |
austenite |
austenite |
|
Magnetic Property |
Non | nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
|
5. Advantages & services
6. Features
7. Applications scenarios
8. More pictures on our products:
Enameled Nichrome wire:
About Tankii:
Tankii is a professional supplier specializing in electrothermal alloys, precision alloys, and thermocouple materials.
Its main products include nickel-chromium, iron-chromium-aluminum, copper-nickel, and pure nickel wires/strips,
and it exports to over 50 countries.
Core Products (TANKII Brand)
1. Electrothermal Alloys (Mainly Ni-Chromium 8020 Flat Wire/Strip)
Ni-Chromium Series: Cr20Ni80 (8020), Cr15Ni60, Cr30Ni70 Wire/Strip
Fe-Chromium-Aluminum Series: 0Cr21Al6, 0Cr25Al5, 0Cr27Al7Mo2 Wire/Strip
Copper-Nickel Series: CuNi1/2/6/8/10/14/19/23/30/34/40/44 Wire/Strip
Pure Nickel Series: N4, N6 Wire/Strip/Bar
2. Precision Resistance Alloys
Manganin, Constantan, Kamar wire, Nickel-Iron alloy wire/strip
3. Thermocouples and Compensating Wires
K, J, E, T, N, S, R, B type thermocouple wires/compensating wires
Core Advantages and Positioning
