プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO 9001, SGS, RoHS
モデル番号: Cuni44
支払及び船積みの言葉
最小注文数量: 10
価格: 15usd
パッケージの詳細: 木材+スプール+段ボール箱
受渡し時間: 10～25営業日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 2000t/年
融点: |
1280 |
重さ: |
ベースの |
化学組成: |
ニッケル 76% |
使用法: |
広く |
熱伝導率: |
低から中程度 |
耐食性: |
素晴らしい |
スプール: |
DIN 80 ～ DIN200 |
状態: |
柔らかい |
導体材質: |
純粋なニッケル線 |
仕様: |
0.07～8.0mm |
わずかなモデル: |
CuNi44、CuNi23、CuNi10 |
標準仕様: |
ASTM B127、ASTM B164 |
サイズ: |
0.16～25mm |
クラス: |
130,155,180,200,220 |
融点: |
1280 |
重さ: |
ベースの |
化学組成: |
ニッケル 76% |
使用法: |
広く |
熱伝導率: |
低から中程度 |
耐食性: |
素晴らしい |
スプール: |
DIN 80 ～ DIN200 |
状態: |
柔らかい |
導体材質: |
純粋なニッケル線 |
仕様: |
0.07～8.0mm |
わずかなモデル: |
CuNi44、CuNi23、CuNi10 |
標準仕様: |
ASTM B127、ASTM B164 |
サイズ: |
0.16～25mm |
クラス: |
130,155,180,200,220 |
CuNi44 alloy (also known as Constantan, Alloy 300, Cuprothal 294, Cupron) is a copper-nickel resistance alloy with 44% nickel content. It features an extremely low temperature coefficient of resistance (TCR), making it ideally suited for precision resistors, shunts, thermocouple extension wires, and low-temperature heating applications.
Our CuNi44 wire offers excellent resistance consistency, good weldability, and long-term stability. It is widely used in electrical instruments, automotive sensors, aerospace control systems, and laboratory equipment.

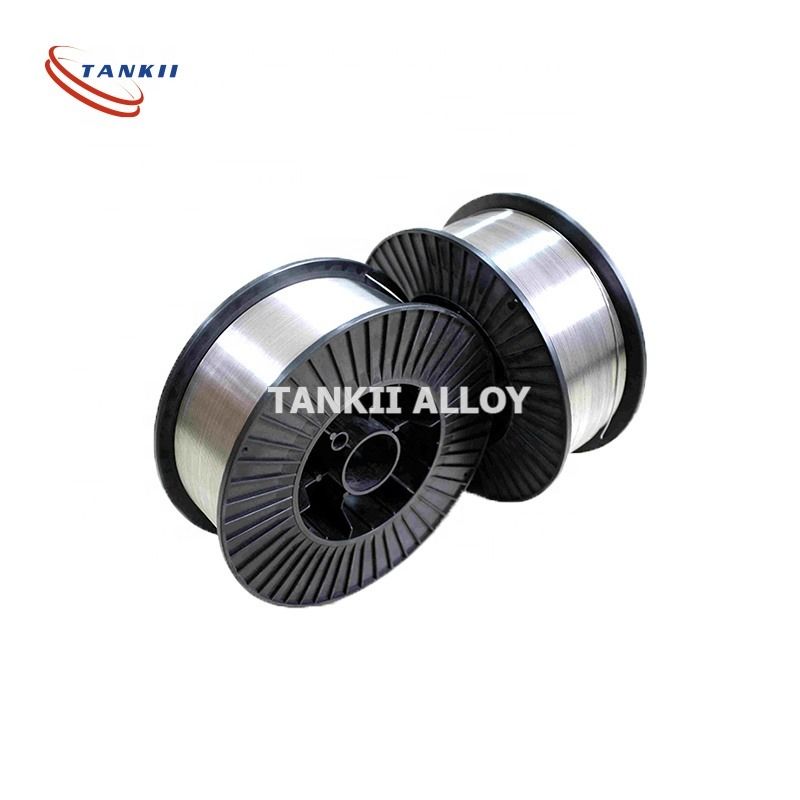

We can supply round wire, flat wire, and ribbon/strip in various diameters and tolerances
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1.50% |
0.5 |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400ºC |
|
Resisivity at 20ºC |
0.49±5%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280ºC |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm3 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min)2%(Min) |
|
EMF vs Cu, μV/ºC (0~100ºC) |
-43 |
|
Micrographic Structure |
austenite |
|
Magnetic Property |
Non |
Applications:
Precision wirewound resistors and shunts
Thermocouple extension wire (Type S, R, B - compensating conductors)
Low-voltage circuit breakers and thermal overload relays
Low-temperature heating elements (e.g., floor heating cables)
Automotive sensors and instrument shunts
Laboratory resistance standards
Why Choose Our CuNi44 Wire?
Strict raw material control (virgin nickel & copper, no recycled scrap)
Advanced drawing and annealing process ensures uniform resistivity and smooth surface
±0.005 mm tolerance available for precision applications
RoHS, REACH, SGS test report can be provided
Short lead time: 15-20 days for bulk orders
Contact us for a free quote or sample request.
