プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO 9001
モデル番号: 6J12/6J13
支払及び船積みの言葉
最小注文数量: 10
価格: 交渉可能
パッケージの詳細: 木材+スプール+段ボール箱
受渡し時間: 10～25営業日
支払条件: T/T
供給の能力: 500トン/年
材料: |
銅マンガンニッケル合金 |
抵抗率: |
0.43～0.48μΩ・m |
密度: |
8.4g/cm3 |
厚さ: |
0.01-0.20 Mm |
幅: |
2～300 mm |
表面: |
明るい |
状態: |
軟質焼鈍/硬質焼鈍 |
アプリケーション: |
シャント抵抗器、電流検出抵抗器、高精度抵抗器、スマートメーター、 |
材料: |
銅マンガンニッケル合金 |
抵抗率: |
0.43～0.48μΩ・m |
密度: |
8.4g/cm3 |
厚さ: |
0.01-0.20 Mm |
幅: |
2～300 mm |
表面: |
明るい |
状態: |
軟質焼鈍/硬質焼鈍 |
アプリケーション: |
シャント抵抗器、電流検出抵抗器、高精度抵抗器、スマートメーター、 |

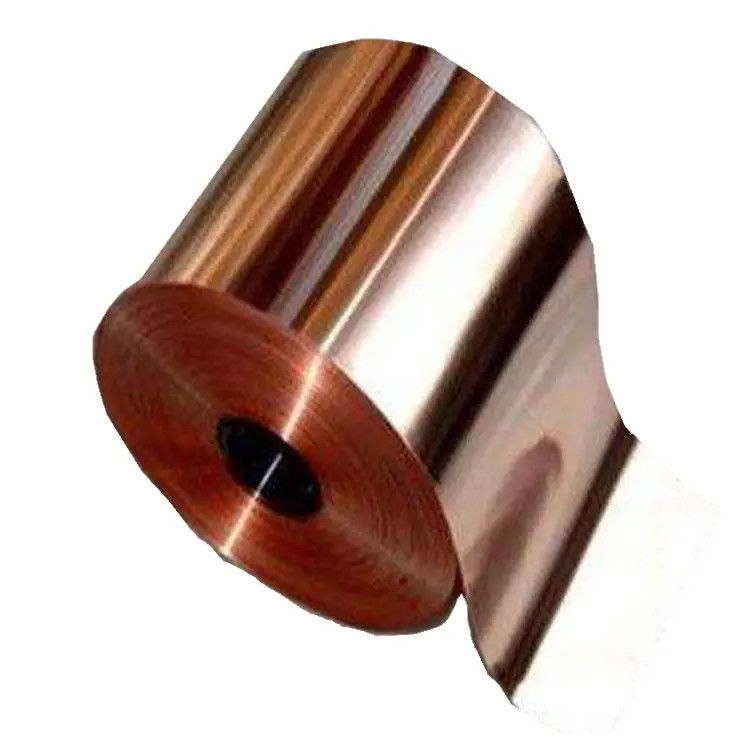

Manganin CuMn12Ni Precision Resistance Foil
Product Description
Manganin wire widely used for precision resistors with the highest requirements, the resistors should be carefully stabilised and the application temperature should not exceed +60 °C. Exceeding the maximum working temperature in air may result in a resistance drift generated by oxidizing. Thus, the long-term stability can be affected negatively. As a result, the resistivity as well as the temperature coefficient of the electric resistance may slightly change. It is also used as low cost replacement material for silver solder for hard metal mounting.
Chemical Content, %
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2~5 | 11~13 | <0.5 | micro | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 0-100ºC |
| Resisivity at 20ºC | 0.44±0.04ohm mm2/m |
| Density | 8.4 g/cm3 |
| Thermal Conductivity | 40 KJ/m·h·ºC |
| Temp Coefficient of Resistance at 20 ºC | 0~40α×10-6/ºC |
| Melting Point | 1450ºC |
| Tensile Strength(Hard) | 585 Mpa(min) |
| Tensile Strength,N/mm2 Annealed,Soft | 390-535 |
| Elongation | 6~15% |
| EMF vs Cu, μV/ºC (0~100ºC) | 2(max) |
| Micrographic Structure | austenite |
| Magnetic Property | non |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
Resistance Alloy- Manganin Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition is available
