プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO 9001
モデル番号: Ni80Cr20
支払及び船積みの言葉
最小注文数量: 10
価格: 交渉可能
パッケージの詳細: 木材+スプール+段ボール箱
支払条件: T/T
供給の能力: 500トン/年

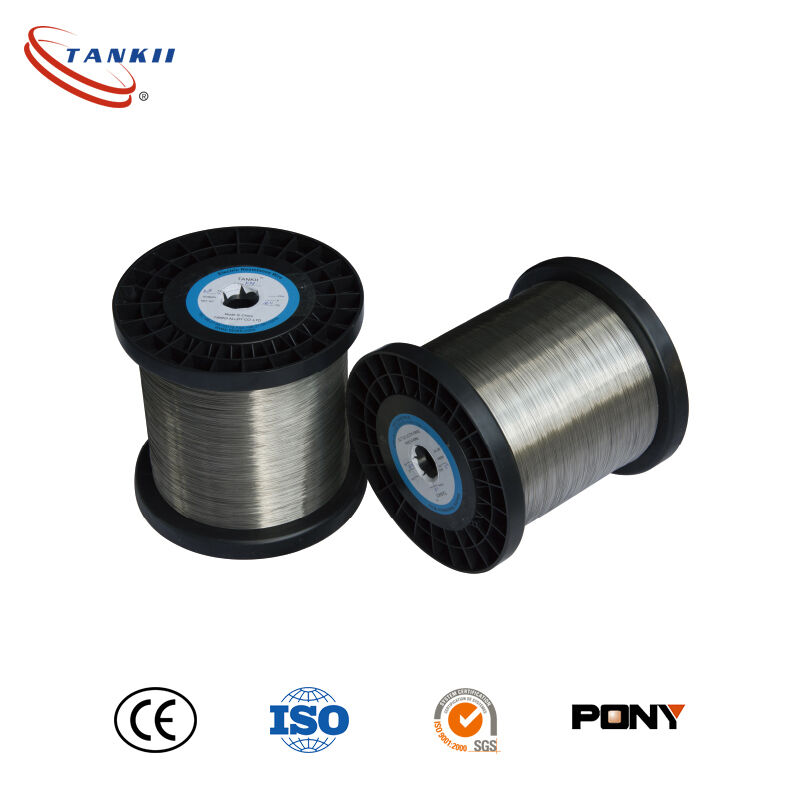

Ni80Cr20 Nichrome Resistance Heating Wire Supplier
Nickel-chromium alloy, nickel chromium iron alloy with high resistivity, surface oxidation resistance is good, and have higher strength at high temperature, good processability and weldability, which can be widely used in metallurgy, electrical appliances, machinery manufacturing, etc do resistance material heating elements and electrical industry.
Nickel chrome Ni80Cr20 Electrical resistivity of alloy main technical performance
| brand | Cr | Ni | Al | Fe | C | P | S | Mn | Si |
| ≤ | |||||||||
| Ni80Cr20 | 20.0~23.0 | Remain | ≤0.5 | ≤1 | 0.08 | 0.02 | 0.15 | 0.60 | 0.75~1.6 |
| brand | highest use temperature/ºC | Melting point/ºC | density (g/cm³) | resistivity/(μΩ·M) | elongation(%) | Coefficient of thermal conductivity | Linear expansion coefficient of | microstructure | magnetic |
| Ni80Cr20 | 1200 | 1400 | 8.40 | 1.09 | ≥20 | 60.3 | 18.0 | austenitic | no magnetic |
Mechanical properties
| brand | Tensile strength/Mpa |
| Ni80Cr20 | 637~786 |
Use time test
| brand | Test temperature/ºC | time/h |
| Ni80Cr20 | 1200 | 80 |
