プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO9001 SGS
モデル番号: Ni80Cr20
支払及び船積みの言葉
最小注文数量: 20kg
価格: 交渉可能
受渡し時間: 10～20日
支払条件: T/T
供給の能力: 100t/year
合金の種類: |
NiCr |
主な使用法: |
抵抗器、ヒーター、炉 |
最高の連続的な実用温度: |
1200℃ |
密度: |
8.4g/cm3 |
比抵抗（20℃）: |
1.09Ω/cmf |
合金の種類: |
NiCr |
主な使用法: |
抵抗器、ヒーター、炉 |
最高の連続的な実用温度: |
1200℃ |
密度: |
8.4g/cm3 |
比抵抗（20℃）: |
1.09Ω/cmf |

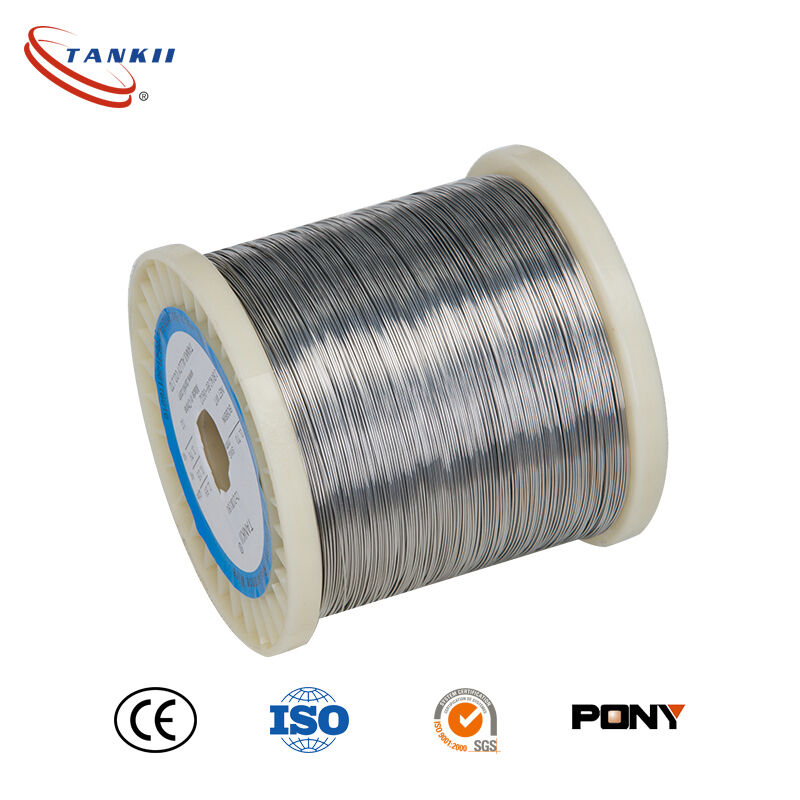

Ni80Cr20 nichrome alloy has outstanding comprehensive performance and obvious advantages.
It owns stable electrical resistivity, uniform heat generation and excellent high-temperature oxidation resistance. It can long-term work under 1200℃ without easy oxidation, scaling or deformation.
With high tensile strength up to 750MPa, the wire is tough and not easy to break during winding and installation.
It features long service life, stable heating effect and low attenuation after long-time operation.
Good corrosion resistance, reliable mechanical property and easy processing. It is the preferred heating alloy material for civil home appliances and industrial high-temperature furnace equipment.
| Properties Grade | Main Chemical Composition | Max Continuous Service Temperature(℃) | Resisivity 20oC (Ω mm2/m) | Density (g/cm3) | Thermal Conductivity(KJ/m@ h@ ℃) | Coefficient of Thermal Expansion(α × 10-6/℃) | Melting Point( ℃) | Elongation(%) | Micrographic Structure | Magnetic Property | ||
| Ni | Cr | Fe | ||||||||||
| Ni80Cr20 | Balance | 20.0-23.0 | ≤ 1.0 | 1200 | 1.09 | 8.4 | 60.3 | 18 | 1400 | > 20 | austenite | nonmagnetic |
