プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO9001
モデル番号: Ni60Cr15
支払及び船積みの言葉
最小注文数量: 20kg
価格: 交渉可能
受渡し時間: 15～20日
供給の能力: 300トン/年

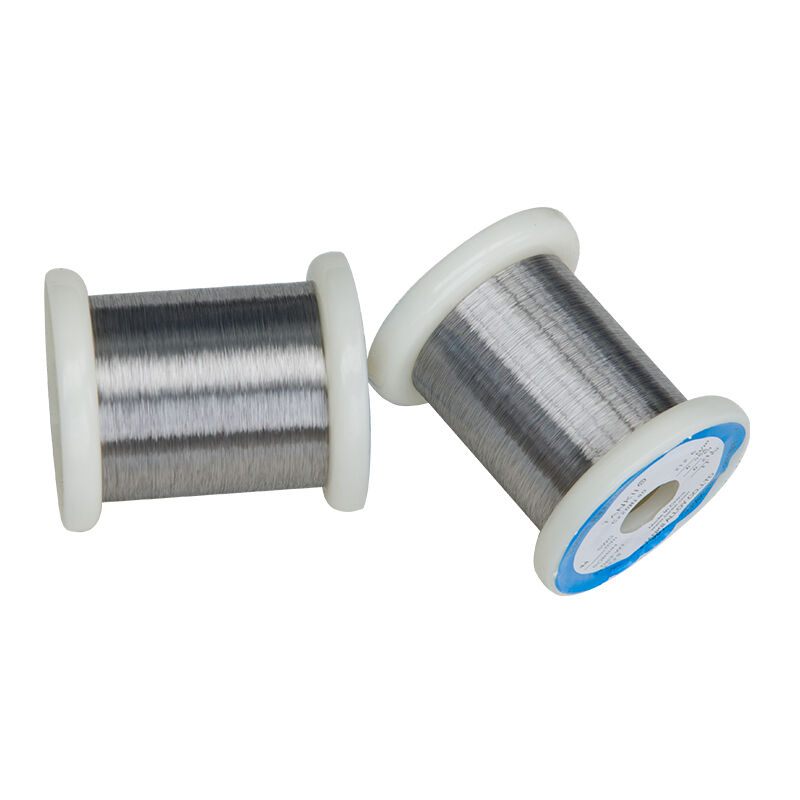

NiCr6015 Resistance Alloy Wire/Strip/Ribbon for Heating Sealer
OUR ALLOY PRODUCT FEATURES
All our raw material is made from prime material, not recycle material. We have more than 25 years experience in manufacturing resistance heating alloys.
In the market, not all the NiCr alloys are with standard chemical composition and stable resistance. Professional and reliable is the soul of our business.
APPLICATION
Heating Element
Hot Cutting Wire
Heat Sealers
Resistors
Industrial furnace ovens
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(Om*mm2/m) | 1.12 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 17 |
| Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1390 |
| Max continuous operating temperature in air (ºC) | 1150 |
| Magnetic properties | non-magnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
We also produce other kind of nickel chromium alloys, such as NiCr 60/15, NiCr 80/20, NiCr 35/20, NiCr 30/20. They are also called Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650, NCHW1
Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
Chromel C,N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II, Electroloy, Nichrome, Alloy C, MWS-67
