プロダクト細部
起源の場所: 中国、上海
ブランド名: TANKII
証明: ISO 9001
モデル番号: PT-IRパイプ
支払及び船積みの言葉
最小注文数量: 200個
価格: 交渉可能
パッケージの詳細: 木製ケース
受渡し時間: 7～20日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 月10トン

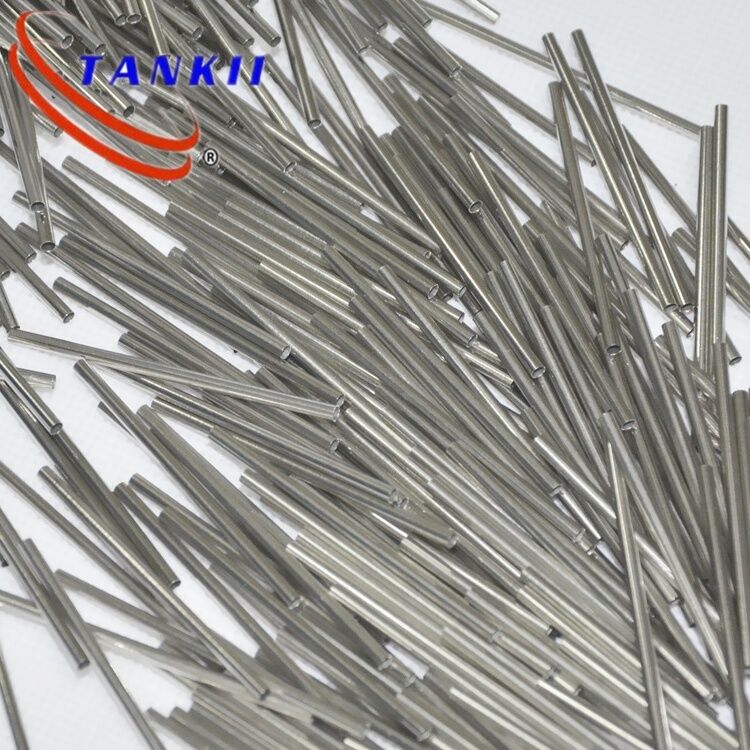

Platinum iridium tubes are mainly composed of platinum and iridium, which is chemically inactive and stable in air and humid environments. When heated below 450 ℃, a thin film of platinum dioxide forms on the surface, and can react with sulfur, phosphorus, and halogens at high temperatures. Platinum is insoluble in hydrochloric acid, sulfuric acid, nitric acid, and alkaline solutions, but soluble in aqua regia and molten alkali. Used in chemical, medical, cement, research university laboratories, for the preparation of high-temperature experimental carriers for anti-cancer drugs or medical devices.
Pt90lr10.
| OD mm |
W.T. /mm | |||||||||||||
| ≥0.015 | ≥0.02 | ≥0.05 | ≥0.10 | ≥0.20 | ≥0.30 | ≥0.40 | ≥0.50 | ≥0.60 | ≥0.70 | ≥0.80 | ≥0.90 | ≥1.00 | ≥1.5 | |
| ≥0.3 | - | - | - | |||||||||||
| ≥0.5 | - | - | - | - | - | |||||||||
| ≥1.0 | - | - | - | - | - | - | - | |||||||
| ≥1.5 | - | - | - | - | - | - | - | - | - | |||||
| ≥2.0 | - | - | - | - | - | - | - | - | - | |||||
| ≥3.0 | - | - | - | - | - | - | - | - | - | - | ||||
| ≥4.0 | - | - | - | - | - | - | - | - | - | - | - | |||
| ≥5.0 | - | - | - | - | - | - | - | - | - | - | - | - | ||
| ≥6.0 | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| ≥7.0 | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| ≥8.0 | - | - | - | - | - | - | - | - | - | - | - | - | ||
| ≥9.0 | - | - | - | - | - | - | - | - | - | - | - | |||
| ≥10.0 | - | - | - | - | - | - | - | - | - | - | ||||
| ≥15.0 | - | - | - | - | - | - | - | - | - | |||||
| ≥20.0 | - | - | - | - | - | - | - | - | ||||||
| Material | Melting point (ºC) | Density (G/cm3) | Vickers hardnes Soft |
Vickers hardnes Hard |
Tensile force (MPa) |
Resistivity (uΩ.cm)20ºC |
| Platinum (99.99%) | 1772 | 21.45 | 40 | 100 | 147 | 10.8 |
| Pt-Rh5% | 1830 | 20.7 | 70 | 160 | 225 | 17.5 |
| Pt-Rh10% | 1860 | 19.8 | 90 | 190 | 274 | 19.2 |
| Pt-Rh20% | 1905 | 18.8 | 100 | 220 | 480 | 20.8 |
| Platinum-Ir (99.99%) | 2410 | 22.42 | ||||
| Pure Platinum-Pt (99.99%) | 1772 | 21.45 | ||||
| Pt-Ir5% | 1790 | 21.49 | 90 | 140 | 174 | 19 |
| Pt-lr10% | 1800 | 21.53 | 130 | 230 | 382 | 24.5 |
| Pt-Ir20% | 1840 | 21.81 | 200 | 300 | 539 | 32 |
| Pt-lr25% | 1840 | 21.7 | 200 | 300 | 238 | 33 |
| Pt-Ir30% | 1860 | 22.15 | 210 | 300 | 242 | 32.5 |
| Pt-Ni10% | 1580 | 18.8 | 150 | 320 | 441 | 32 |
| Pt-Ni20% | 1450 | 16.73 | 220 | 400 | 588 | 34.1 |
| Pt-w% | 1850 | 21.3 | 200 | 360 | 588 | 62 |
| Applications: Gas sensors. Various sensors, medical components. Electric and heating probes, etc. | ||||||
