プロダクト細部
起源の場所: 中国、上海、
ブランド名: TANKII
証明: ISO9001, SGS
モデル番号: アンバー36
支払及び船積みの言葉
最小注文数量: 10kg
価格: 交渉可能
パッケージの詳細: 木製ケース
受渡し時間: 7～20日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 月産100トン
型番: |
フェニ36 |
外径: |
最小0.20mm |
WT: |
最小0.015MM |
長さ: |
最小0.20mm |
形: |

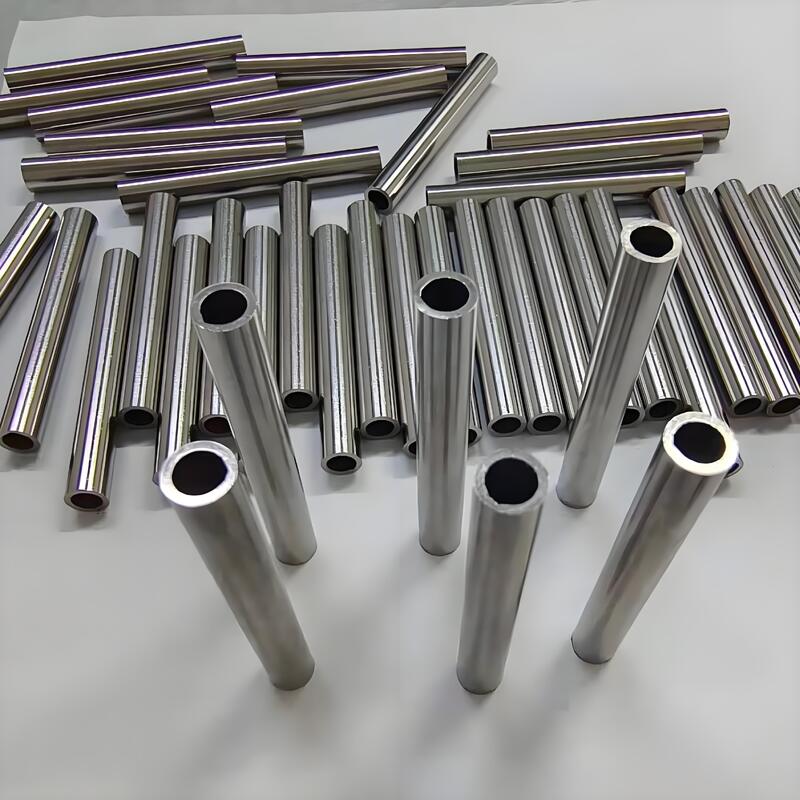

コイルパイプ。キャピラリパイプ シームレスチューブ |
表面: |
明るい表面 |
サンプル: |
少量の注文も受け付けます |
型番: |
フェニ36 |
外径: |
最小0.20mm |
WT: |
最小0.015MM |
長さ: |
最小0.20mm |
形: |
コイルパイプ。キャピラリパイプ シームレスチューブ |
表面: |
明るい表面 |
サンプル: |
少量の注文も受け付けます |
Invar is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the Level staff (leveling rod) used is made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.
Invar use oxyacetylene welding, electric arc welding, welding and other welding methods. Since the coefficient of expansion and chemical composition of the alloy is related should be avoided due to welding causes a change in the alloy composition, it is preferable to use Argon arc welding welding filler metals preferably contains 0.5% to 1.5% titanium, in order to reduce weld porosity and crack.
| Controlled Expansion and Glass Sealing Alloys | |||
| German standard number | Tradename | DIN | UNS |
| 1.3912 | Alloy 36 | 17745 | K93600/93601 |
| 1.3917 | Alloy 42 | 17745 | K94100 |
| 1.3922 | Alloy 48 | 17745 | K94800 |
| 1.3981 | Pernifer2918 | 17745 | K94610 |
| 2.4478 | NiFe 47 | 17745 | N14052 |
| 2.4486 | NiFe47Cr | 17745 | - |
Normal composition%
| Ni | 35~37.0 | Fe | Bal. | Co | - | Si | ≤0.3 |
| Mo | - | Cu | - | Cr | - | Mn | 0.2~0.6 |
| C | ≤0.05 | P | ≤0.02 | S | ≤0.02 |
Coefficient of expansion
| θ/ºC | α1/10-6ºC-1 | θ/ºC | α1/10-6ºC-1 |
| 20~-60 | 1.8 | 20~250 | 3.6 |
| 20~-40 | 1.8 | 20~300 | 5.2 |
| 20~-20 | 1.6 | 20~350 | 6.5 |
| 20~-0 | 1.6 | 20~400 | 7.8 |
| 20~50 | 1.1 | 20~450 | 8.9 |
| 20~100 | 1.4 | 20~500 | 9.7 |
| 20~150 | 1.9 | 20~550 | 10.4 |
| 20~200 | 2.5 | 20~600 | 11.0 |
Typical Physical properties
| Density (g/cm3) | 8.1 |
| Electrical resistivity at 20ºC(OMmm2/m) | 0.78 |
| Temperature factor of resistivity(20ºC~200ºC)X10-6/ºC | 3.7~3.9 |
| Thermal conductivity, λ/ W/(m*ºC) | 11 |
| Curie point Tc/ ºC | 230 |
| Elastic Modulus, E/ Gpa | 144 |
