プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO 9001
モデル番号: 0CR23AL5
支払及び船積みの言葉
最小注文数量: 10
価格: 交渉可能
パッケージの詳細: 木材+スプール+段ボール箱
受渡し時間: 10～25営業日
支払条件: T/T
供給の能力: 500トン/年
合金の種類: |
糞便 |
厚さ: |
0.05-5.0mm |
幅: |
2～300 mm |
表面: |
ブライト、冷間圧延 |
状態: |
軟質焼鈍/硬質焼鈍 |
抵抗率: |
1.35Ω・mm²/m |
密度: |
7.25g/cm3 |
最高動作温度: |
1250°C |
アプリケーション: |
工業炉、熱処理装置、セラミック窯、電熱体、熱処理システム |
合金の種類: |
糞便 |
厚さ: |
0.05-5.0mm |
幅: |
2～300 mm |
表面: |
ブライト、冷間圧延 |
状態: |
軟質焼鈍/硬質焼鈍 |
抵抗率: |
1.35Ω・mm²/m |
密度: |
7.25g/cm3 |
最高動作温度: |
1250°C |
アプリケーション: |
工業炉、熱処理装置、セラミック窯、電熱体、熱処理システム |

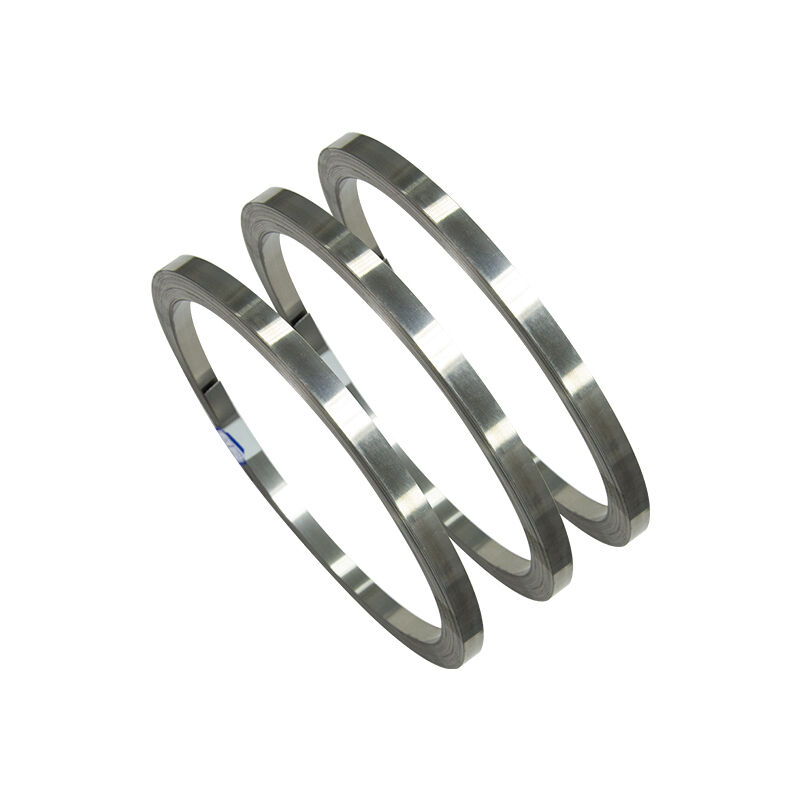

0Cr23Al5 FeCrAl Heating Resistance Alloy Strip
0Cr23Al5 FeCrAl resistance heating strip is a ferritic iron-chromium-aluminum alloy with excellent oxidation resistance and high temperature performance. It is widely used for manufacturing industrial furnace heating elements, electric heating equipment, heat treatment furnaces and various resistance heating applications.
Typical applications form Alloy135 are used in home appliances and industrial furnace,and kinds of elements in heaters and dryers.
Normal composition%
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | Max 0.6 | 20.5~23.5 | Max 0.60 | 4.2~5.3 | Bal. | - |
Typical Mechanical properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 485 | 670 | 23 |
Typical Physical properties
| Density (g/cm3) | 7.25 |
| Resistivity at 20ºC(мкОм*м) | 1.3-1,4 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 15 |
| Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1500 |
| Max continuous operating temperature in air (ºC) | 1250 |
| Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC | 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1 | 1.002 | 1.007 | 1.014 | 1.024 | 1.036 | 1.056 | 1.064 | 1.070 | 1.074 | 1.078 | 1.081 | 1.084 | - |
Style of supply
| Alloy135W | Wire | D=0.03mm~8mm | ||
| Alloy135R | Ribbon | W=0.4~40mm | T=0.03~2.9mm | |
| Alloy135S | Strip | W=8~250mm | T=0.1~3.0mm | |
| Alloy135F | Foil | W=6~120mm | T=0.003~0.1mm | |
| Alloy135B | Bar | Dia=8~100mm | L=50~1000mm | |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
