プロダクト細部
Place of Origin: Shanghai, China
ブランド名: TANKII
証明: ISO9001
Model Number: Alloy 52 / TK41152
支払及び船積みの言葉
Minimum Order Quantity: 1KG
価格: 交渉可能
Packaging Details: Wooden Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month
material: |
Nickel Iron Alloy tube |
Condition: |
Soft Annealed |
OD: |
0.50-8.00mm |
WT: |
0.015 MM MIN. |
ID: |
0.10MM Min. |
Length: |
0.30MM Min. |
sample: |
accpted small order |
Type: |
precision Alloy tube |
material: |
Nickel Iron Alloy tube |
Condition: |
Soft Annealed |
OD: |
0.50-8.00mm |
WT: |
0.015 MM MIN. |
ID: |
0.10MM Min. |
Length: |
0.30MM Min. |
sample: |
accpted small order |
Type: |
precision Alloy tube |

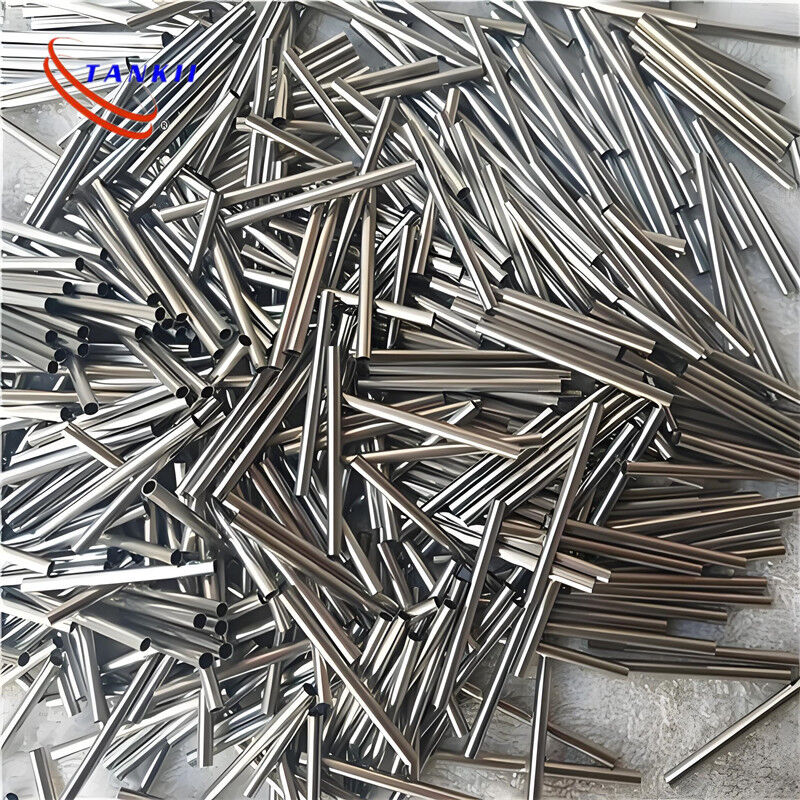

Precison Alloy TK41152 Feni52 ASTM F30 / Nickel Alloy 52 tube N52 / Niloy52 Low Expansion Alloy pipe
TK41152 / Alloy 52 Contains 52% nickel and 48% iron and is widely used in the telecommunications industry.It also finds a application in a wide variety of electronic applications,especially for glass seals.
TK41152 / Alloy 52 is one of the glass to metal sealing alloys designed for use with a variety of soft glasses. Known for a coefficient of thermal expansion that is almost constant up to 1050F (565 C).
Size Range:
*Capillary ---OD 8.0mm~0.5mm,ID 0.1mm min,length:0.3mm Min,Condition: cold drawn, bright, bright annealed.
*Pipe ---OD 120mm~8.0mm,ID 8.0mm~129mm,length:≤4000mm,Condition: cold drawn, bright, bright annealed.
Chemistry:
| Cr | Al | C | Fe | Mn | Si | P | S | Ni | Mg | |
| Min | -- | -- | -- | -- | -- | -- | -- | -- | 50.5 | -- |
| Max | 0.25 | 0.10 | 0.05 | Bal. | 0.60 | 0.30 | 0.025 | 0.025 | -- | 0.5 |
Average Linear Expansion Coefficient:
| Grade | α1/10-6ºC-1 | |||||||
| 20~100ºC | 20~200ºC | 20~300ºC | 20~350ºC | 20~400ºC | 20~450ºC | 20~500ºC | 20~600ºC | |
| TK41152 | 10.3 | 10.4 | 10.2 | 10.3 | 10.3 | 10.3 | 10.3 | 10.8 |
Properties:
| Condition | Approx. tensile strength | Approx. operating temperature | ||
| N/mm² | ksi | °C | °F | |
| Annealed | 450 - 550 | 65 - 80 | up to +450 | up to +840 |
| Hard Drawn | 700 - 900 | 102 - 131 | up to +450 | up to +840 |
| Forming: |
| The alloy has good ductility and can be formed by standard means. |
| Welding: |
| Welding by conventional methods is appropriate for this alloy. |
| Heat Treatment: |
| TK41152 should be annealed at 1500F followed by air cooling. Intermediate strain relieving can be performed at 1000F. |
| Forging: |
| Forging should be done at a temperature of 2150 F. |
| Cold Working: |
| The alloy is readily cold worked. Deep drawing grade should be specified for that forming operation and annealed grade for general forming. |
