プロダクト細部
起源の場所: 中国
ブランド名: Tankii
証明: ISO9001 Rohs
モデル番号: 1j85
支払及び船積みの言葉
最小注文数量: 30kg
価格: 交渉可能
パッケージの詳細: カートンボックス
受渡し時間: 15-25日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 1年ごとの2000Tons

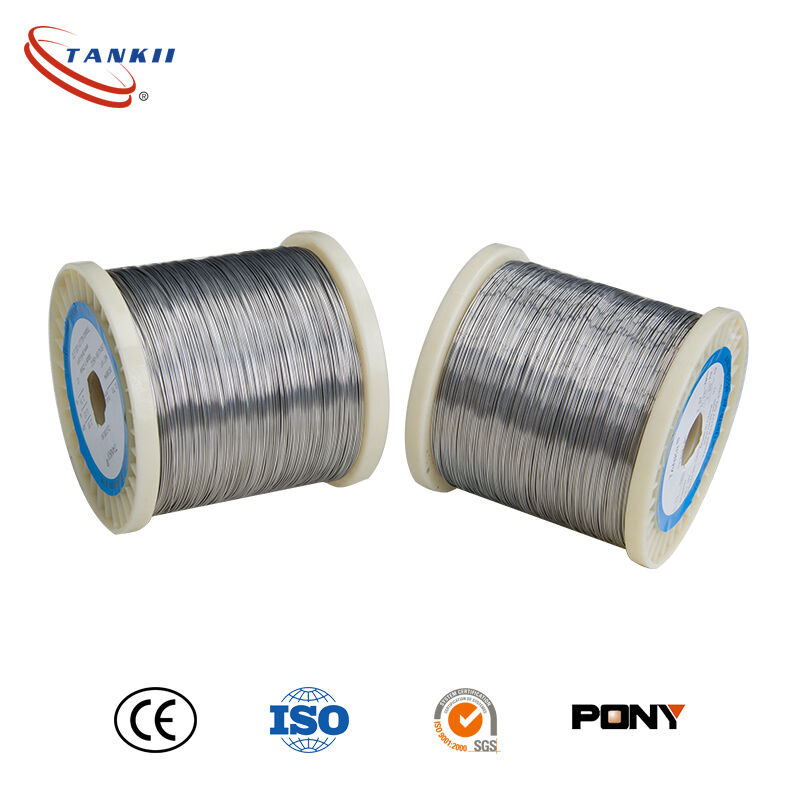

型番: |
1j85 |
製品タイプ: |
ワイヤー |
材料: |
FeNi |
直径: |
0.1~10mm |
炭素含有量: |
低炭素 |
起源: |
中国 |
生産能力: |
3000トン/年 |
HSコード: |
750522000 |
型番: |
1j85 |
製品タイプ: |
ワイヤー |
材料: |
FeNi |
直径: |
0.1~10mm |
炭素含有量: |
低炭素 |
起源: |
中国 |
生産能力: |
3000トン/年 |
HSコード: |
750522000 |
Wireless charging technology is not through a wire but rather a power transfer of technology through the medium of air, the main principle is the use of magnetic resonance in the air transmission charges between the charger and the device, through the coil and a capacitor is formed between the charger and the device resonance, to achieve energy efficient transmission.
The following are details of our products 1J80:
Chemical composition
| composition | C | P | S | Mn | Si |
| ≤ | |||||
| Content(%) | 0.03 | 0.020 | 0.020 | 0.60~1.10 | 1.10~1.50 |
| composition | Ni | Cr | Mo | Cu | Fe |
| Content(%) | 79.0~81.5 | 2.60~3.00 | - | ≤0.20 | Bal |
Heat treatment system
| shop sign | Annealing medium | heating temperature | Keep the temperature time/h | Cooling rate |
1j80 |
Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa | Along with the furnace heating up 1100~1150ºC | 3~6 |
In ≤200 ºC / h speed cooling to 400~500 ºC, fast to 200 ºC draw a charge |
