プロダクト細部
起源の場所: 中国、上海
ブランド名: TANKII
証明: ISO9001
モデル番号: Kovar
支払及び船積みの言葉
最小注文数量: 5kg
価格: 交渉可能
パッケージの詳細: カートン+ Woonedの場合
受渡し時間: 7～20日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 月10トン

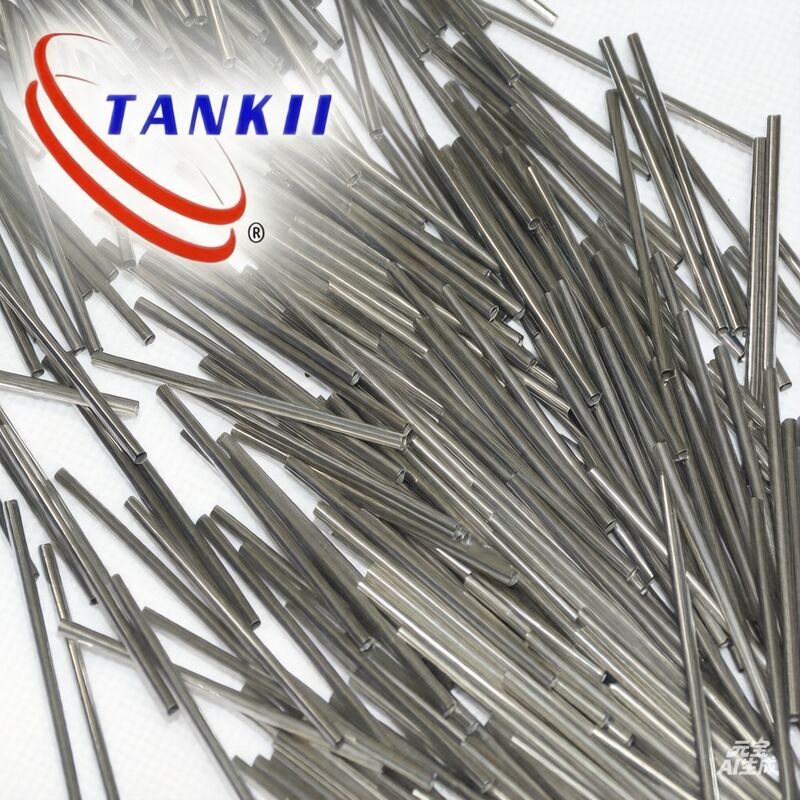

Kovar alloy is a vacuum melted, iron-nickel-cobalt alloy that is widely used in the electronics industry. Kovar is a nickel-iron-cobalt, controlled-expansion alloy which contains 29% nickel. Its coefficient of expansion, which decreases with rising temperature to the inflection point, matches the expansion rate of borosilicate glasses and alumina ceramics.
Kovar alloy has been used for making hermetic seals with the harder Pyrex glasses and ceramic materials. This alloy has found wide application in power tubes, microwave tubes, transistors, and diodes. In integrated circuits, it has been used for the flat pack and the dual-in-line package.
Chemical Composition
| Grade | C% | P% | S% | Mn% | Si% | Cu% | Cr% | Mo% | Ni% | Co% | Fe% |
| Kovar | Max 0.03 | Max 0.020 | Max 0.020 | Max 0.50 | Max 0.30 | Max 0.20 | Max 0.20 | Max 0.20 | 28.5-29.5 | 16.8-17.8 | Bal. |
Specifications
| Grade | UNS | Werkstoff Nr. |
| Kovar | K94610 | 1.3981 |
Physical Properties
| Grade | Density | Melting Point |
| Kovar | 8.17 g/cm3 | 1449°C |
Coefficient of Expansion
| Alloy | Linear Coefficient of Thermal Expansion a,10-6/°C | |||||||
| 20-200°C | 20-300°C | 20-400°C | 20-450°C | 20-500°C | 20-600°C | 20-700°C | 20-800°C | |
| Kovar | 5.9 | 5.3 | 5.1 | 5.3 | 6.2 | 7.8 | 9.2 | 10.2 |
