プロダクト細部
起源の場所: 中国
ブランド名: TANKII
証明: ISO9001
モデル番号: 1K101
支払及び船積みの言葉
最小注文数量: 10KG
価格: 交渉可能
パッケージの詳細: 段ボール梱包
受渡し時間: 7-20日
支払条件: T/T
供給の能力: 500kg/月
材料: |
Fe基ナノ結晶合金 |
学年: |
1K101 |
厚さ: |
0.025～0.035mm |
幅: |
5～300mm |
飽和誘導: |
≥1.20T |
透過性: |
高い |
応用: |
電流トランスフォーマーコア |
材料: |
Fe基ナノ結晶合金 |
学年: |
1K101 |
厚さ: |
0.025～0.035mm |
幅: |
5～300mm |
飽和誘導: |
≥1.20T |
透過性: |
高い |
応用: |
電流トランスフォーマーコア |
|
Product Name
|

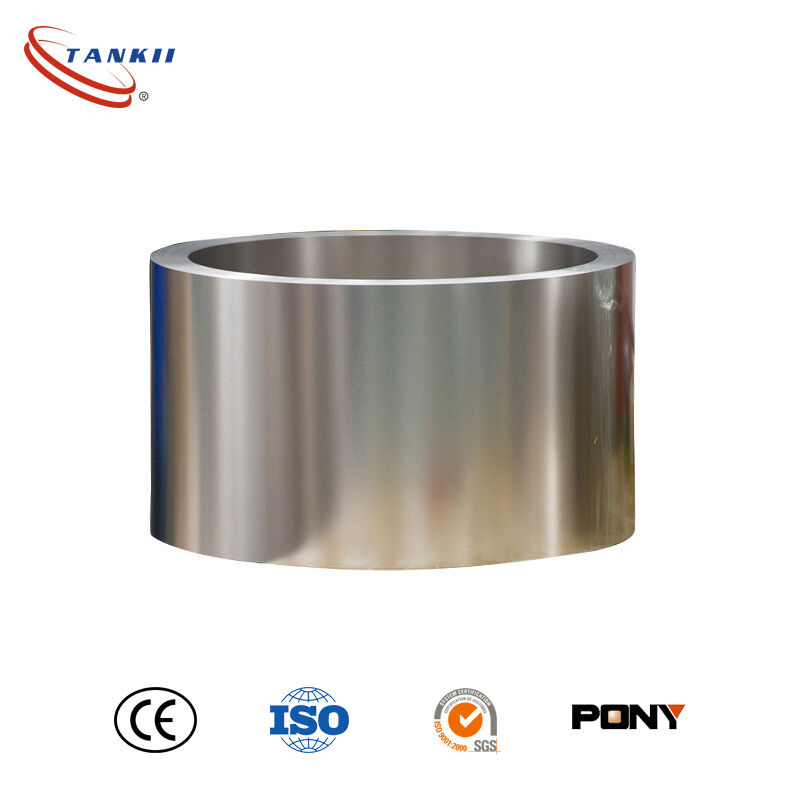

1K101 Nanocrystalline Ribbon 0.025mm Soft Magnetic Alloy Strip |
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Brand Name
|
Tankii
|
1K101 nanocrystalline ribbon is a Fe-based soft magnetic alloy manufactured by rapid solidification technology. With a thickness of 0.025 mm, it offers high permeability, low core loss, high saturation flux density and excellent thermal stability. The material is widely used for manufacturing nanocrystalline transformer cores, current transformer cores, current sensors, common mode chokes, EMI suppression components and other high-performance magnetic devices. Custom widths and slit sizes are available according to customer requirements.
Applications:|
Physical Properties
|
|
|
Saturation magnetic flux density Bs
|
1.5 T
|
|
Curie temperature Tc
|
410ºC
|
|
Crystallization temperature Tx
|
535ºC
|
|
Saturationmagnetostriction coefficientλs
|
27×10-6
|
|
Density d
|
7.18 (g/cm3)
|
|
Resistivity ρ
|
137µΩ·cm
|
|
Continuous operating temperature
|
150ºC
|
